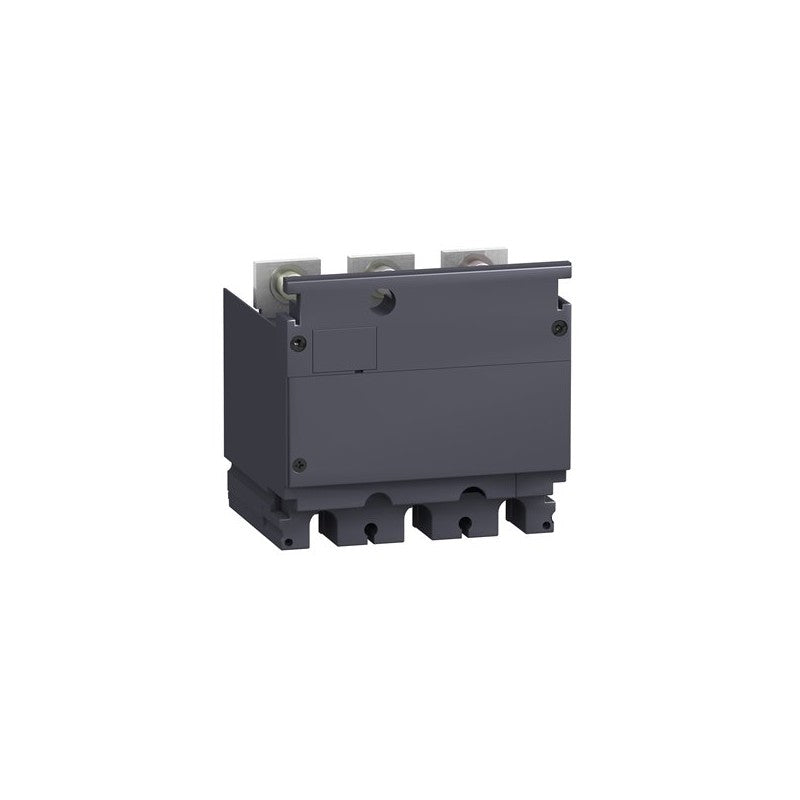

The Schneider Electric LV431569 is a current transformer (CT) module designed for use with NSX100 to NSX250 circuit breakers. This 3-pole module provides voltage output and is rated for a maximum current of 250 A. It is engineered to integrate seamlessly into Schneider Electric's Compact NSX product line, offering essential measurement capabilities for power monitoring and protection systems.

Technical details

• Series: Compact NSX
• Current Rating: 250 A
• Number of Poles: 3
• Output Type: Voltage Output
• Functionality: Current Transformer (CT) Module
• Compatible Breaker Series: NSX100, NSX160, NSX250
• Mounting Type: Integrated within NSX breaker frame

Applications & compatibility

This CT module is integral to electrical distribution systems requiring precise current measurement for protection and monitoring. It is commonly found in industrial control panels, motor control centers, and power distribution units for applications such as manufacturing facilities, data centers, and building management systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431569 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
