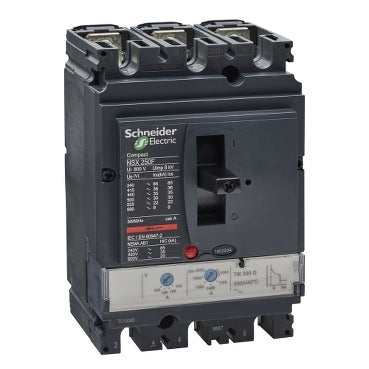

The Schneider Electric ComPact NSX250F circuit breaker is designed for robust electrical protection in demanding industrial environments. This 3-pole unit features a 36 kA interrupting capacity at 415 VAC, ensuring safety and reliability in medium-voltage applications. It incorporates a TMD trip unit rated for 200 A, providing precise overcurrent and short-circuit protection.

Technical details

• Series: ComPact NSX
• Model: NSX250F
• Number of Poles: 3
• Voltage Rating: 415 VAC
• Interrupting Capacity: 36 kA at 415 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 200 A
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is suitable for use in power distribution panels, motor control centers, and electrical switchgear within manufacturing facilities, data centers, and infrastructure projects. Its specifications make it compatible with systems requiring reliable protection against fault currents up to 36 kA.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431631 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
