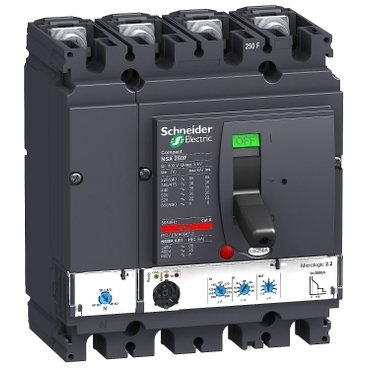

The Schneider Electric ComPact NSX250F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the ComPact NSX series, features a breaking capacity of 36 kA at 415 VAC, ensuring reliable performance under fault conditions. It is equipped with a MicroLogic 2.2 electronic trip unit, factory-set to 250 A, providing advanced overcurrent and short-circuit protection.

Technical details

• Series: ComPact NSX
• Model: NSX250F
• Number of Poles: 4
• Rated Operational Voltage: 415 VAC
• Short-Circuit Breaking Capacity: 36 kA at 415 VAC
• Trip Unit Type: MicroLogic 2.2
• Rated Current (Trip Unit): 250 A
• Configuration: 4d (typically indicates 4 normally open auxiliary contacts)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a branch circuit breaker in various industrial settings. It is commonly found in applications such as manufacturing plants, data centers, and infrastructure projects requiring reliable power distribution and protection for equipment rated up to 250 amps.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431780 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
