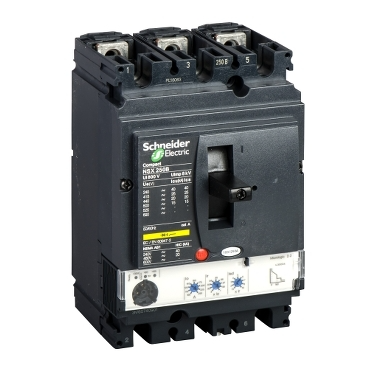

The Schneider Electric Compact NSX250N circuit breaker is engineered for robust electrical protection in demanding industrial environments. As a key component within the NSX series, this 3-pole breaker features a Micrologic 2.2 trip unit and is designed to handle significant fault currents, making it suitable for main distribution or motor protection applications.

Technical details

• Series: Compact NSX
• Model: NSX250N
• Number of Poles: 3
• Rated Current: 250 A
• Trip Unit: Micrologic 2.2
• Interrupting Capacity: 50 kA at 415 VAC
• Configuration: 3d (likely refers to the number of auxiliary contacts or specific trip unit features, verify with datasheet)

Applications & compatibility

This circuit breaker is commonly deployed in power distribution panels, motor control centers, and electrical systems for manufacturing plants, material handling, and process control. Its high interrupting rating ensures safety and reliability in applications requiring protection against short circuits and overloads, such as on packaging lines, in CNC machinery, or within conveyor systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV431870 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
