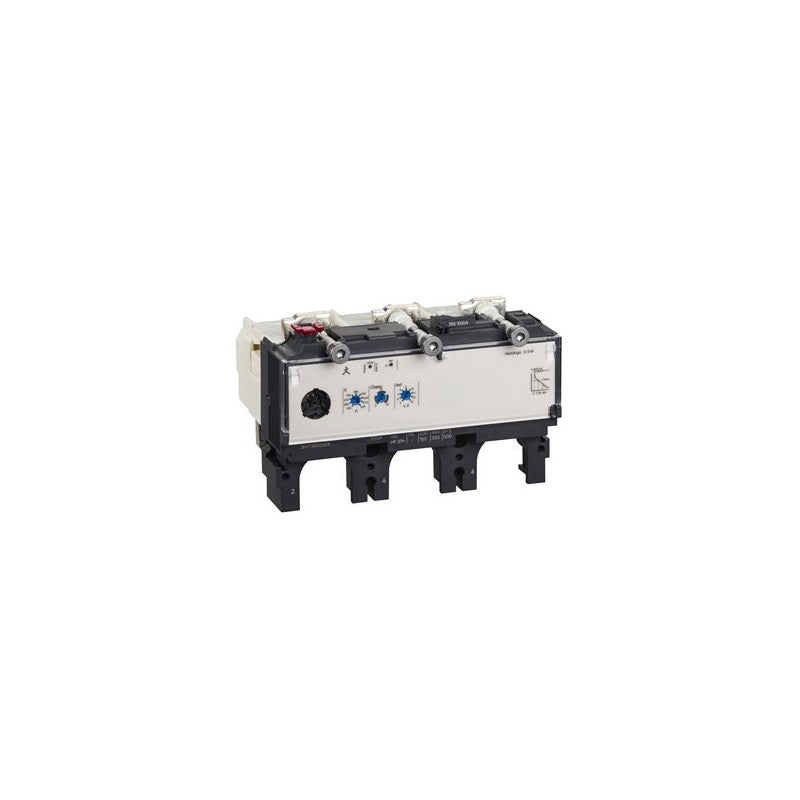

The Schneider Electric Micrologic 2.3 M trip unit is designed for use with the Compact NSX 630 series circuit breakers. This electronic trip unit provides advanced protection and control capabilities for medium-voltage power distribution systems. It is engineered to ensure reliable operation and safety in demanding industrial environments.

Technical details

• Series: Micrologic 2.3 M
• Compatible Circuit Breaker Series: Compact NSX 630
• Type: Electronic Trip Unit
• Current Rating: 500 A
• Number of Poles: 3
• Configuration: 3d (likely refers to the number of sensing poles and/or internal configuration)
• Protection Functions: Overload, Short-circuit (specific parameters to be confirmed via datasheet)
• Control Interface: Electronic

Applications & compatibility

This trip unit is integral to the protection scheme of Schneider Electric Compact NSX 630 circuit breakers, commonly found in motor control centers, power distribution panels, and switchgear assemblies. Its application spans various industries including manufacturing, water treatment, and building automation where reliable circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV432071 or contact our technical team for cross-reference assistance with compatible Compact NSX 630 components.
