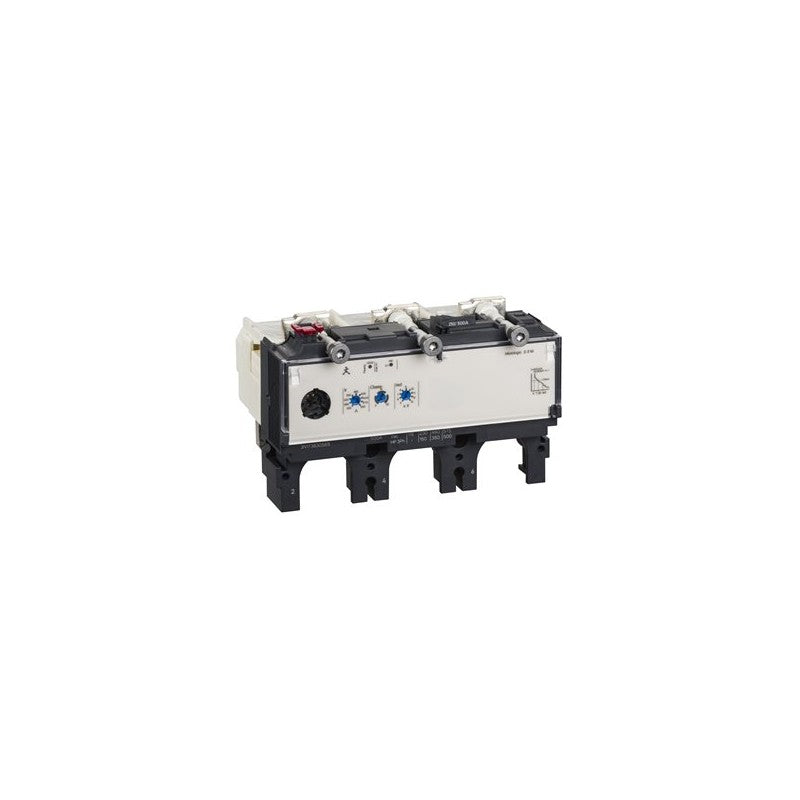

The Schneider Electric LV432072 is a Micrologic 2.3 M electronic trip unit designed for use with Compact NSX 400/630 series circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current sensing and tripping functions, ensuring the safety and reliability of connected equipment.

Technical details

• Trip Unit Type: Micrologic 2.3 M
• Electronic Protection: Yes
• Compatible Circuit Breaker Series: Compact NSX 400/630
• Number of Poles: 3
• Pole Configuration: 3d (3 poles, 3 detected)
• Current Rating: 320 A
• Protection Functions: Long-time pickup, short-time pickup, instantaneous pickup, ground fault pickup (specific settings require datasheet verification)
• Control Interface: Electronic

Applications & compatibility

This trip unit is integral to the protection schemes of industrial and commercial electrical distribution panels. It is commonly found in applications requiring robust overcurrent and short-circuit protection, such as manufacturing facilities, data centers, and building management systems. Ensure compatibility with your specific Compact NSX 400/630 breaker frame by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432072 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
