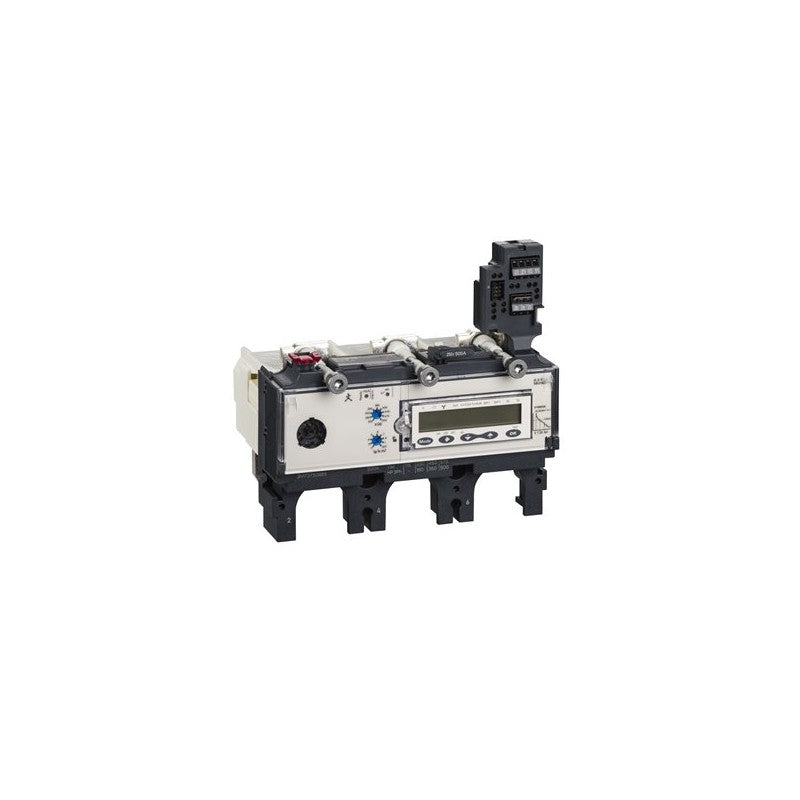

The Schneider Electric LV432074 is a Micrologic 6.3 E-M trip unit designed for use with Compact NSX 630 circuit breakers. This electronic trip unit is engineered for precise current monitoring and protection in three-pole electrical distribution systems. It provides advanced trip functions essential for safeguarding equipment and personnel in demanding industrial environments.

Technical details

• Series: Micrologic 6.3 E-M
• Type: Electronic Trip Unit
• Current Rating: 500 A
• Poles: 3d (3 poles)
• Compatible Circuit Breaker Series: Compact NSX 630
• Protection Functions: Includes long-time, short-time, instantaneous, and earth-leakage protection (E-M designation indicates specific earth-leakage functionality).
• Display: Integrated display for real-time current readings and fault diagnostics.
• Adjustability: Offers adjustable settings for trip thresholds and time delays to suit specific application requirements.

Applications & compatibility

This trip unit is specifically designed for integration into Schneider Electric's Compact NSX 630 molded case circuit breaker frames. It is commonly deployed in power distribution panels for commercial buildings, manufacturing facilities, data centers, and other applications requiring robust overcurrent and earth-leakage protection for circuits up to 500 Amperes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432074 or contact our technical team for cross-reference assistance with compatible Compact NSX 630 components.
