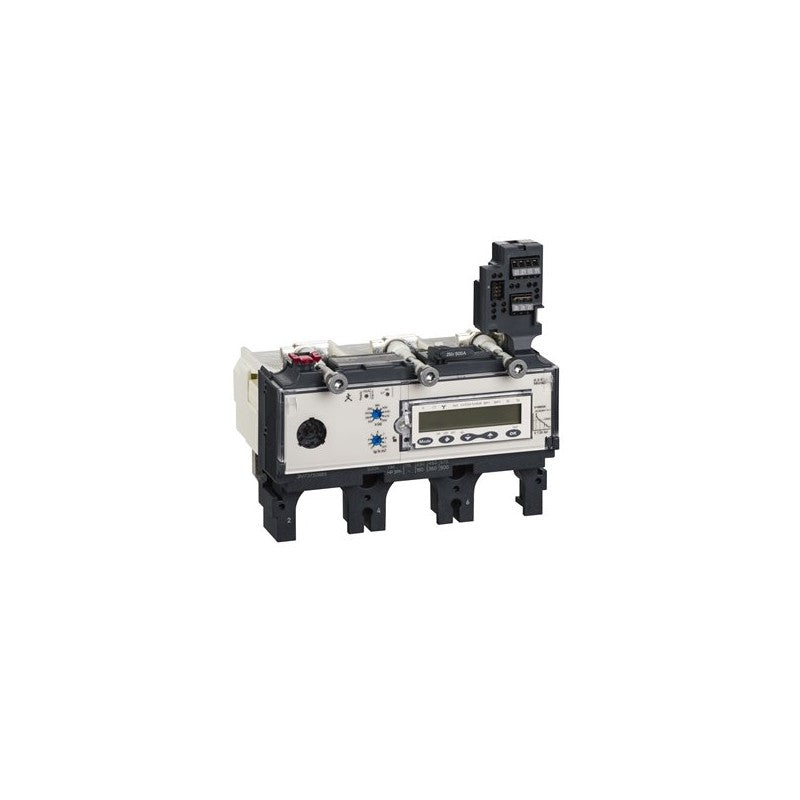

The Schneider Electric LV432075 is a Micrologic 6.3 E-M electronic trip unit designed for use with Compact NSX 400/630 series circuit breakers. This trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to deliver precise current monitoring and fault interruption, ensuring the safety and reliability of connected equipment.

Technical details

• Trip Unit Series: Micrologic 6.3 E-M
• Compatible Circuit Breaker Series: Compact NSX 400/630
• Type: Electronic Trip Unit
• Current Rating: 320 A
• Number of Poles: 3
• Configuration: 3d (likely refers to 3 poles and 3 ground fault detection, but verify with datasheet)
• Protection Functions: Includes Earth Leakage Protection (E-M designation)
• Control Features: Electronic trip unit offers adjustable settings for overcurrent protection (long-time, short-time, instantaneous) and earth leakage protection.

Applications & compatibility

This trip unit is integral to the protection schemes of industrial power distribution panels, motor control centers, and facility electrical systems. It is commonly found in applications requiring robust overcurrent and earth fault protection, such as manufacturing plants, data centers, and commercial buildings utilizing the Schneider Electric Compact NSX platform.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432075 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
