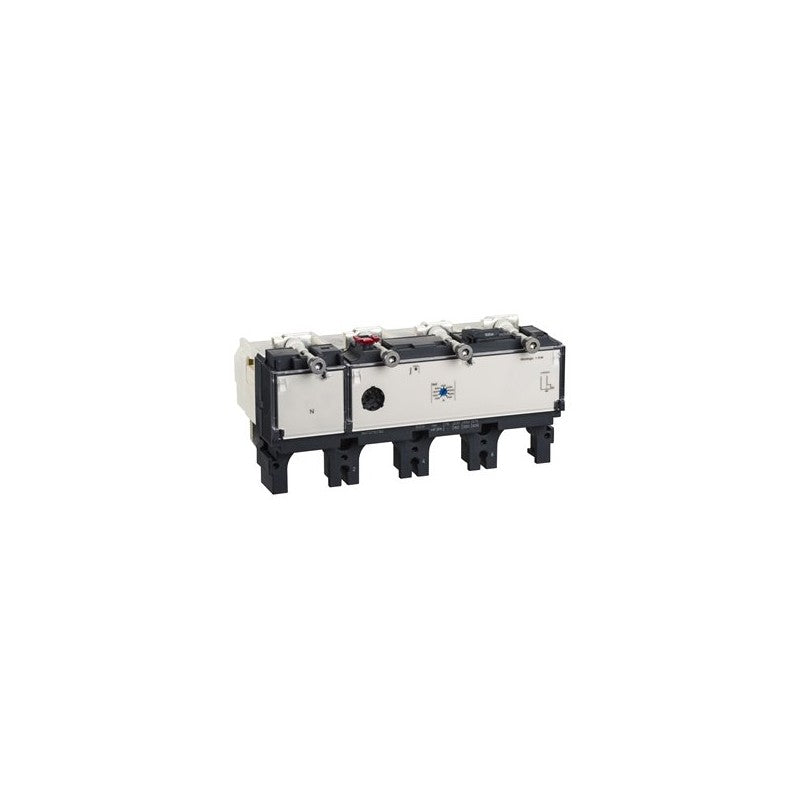

Schneider Electric's Micrologic 1.3 M trip unit is engineered for use with the Compact NSX 630 circuit breaker series. This electronic trip unit provides advanced protection and control capabilities for 4-pole configurations, ensuring reliable operation in demanding industrial environments. Its design is optimized for applications requiring precise current monitoring and fault interruption.

Technical details

• Trip Unit Type: Electronic Micrologic 1.3 M
• Compatible Circuit Breaker Series: Compact NSX 630
• Number of Poles: 4
• Current Rating: 500 A
• Protection Functions: Overload, short-circuit, ground-fault (specific settings require datasheet verification)
• Communication Protocol: Not specified in provided information; verify with manufacturer datasheet
• Mounting Type: Designed for integration within Compact NSX 630 frame
• Display: Integrated display for status and settings (specific features require datasheet verification)

Applications & compatibility

This trip unit is integral to the protection schemes of medium-voltage switchgear and distribution panels commonly found in manufacturing facilities, data centers, and commercial buildings. It is designed to protect electrical circuits in applications such as motor control centers, power distribution units, and critical infrastructure where reliable circuit breaker performance is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432077 or contact our technical team for cross-reference assistance with compatible Compact NSX 630 components.
