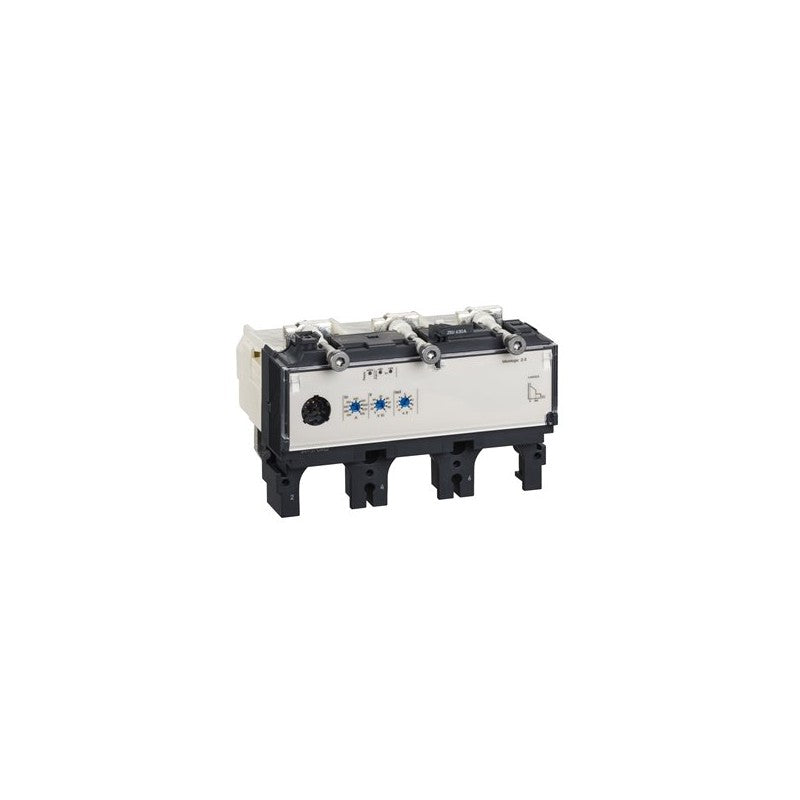

The Schneider Electric Micrologic 2.3 trip unit is an electronic control module designed for use with Compact NSX 400/630 series circuit breakers. This 3-pole unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to integrate seamlessly into the NSX platform, offering precise current monitoring and trip functions.

Technical details

• Series: Micrologic 2.3
• Type: Electronic trip unit
• Rating: 400A
• Poles: 3
• Configuration: 3d (likely refers to 3 normally open auxiliary contacts and 3 normally closed auxiliary contacts, but verify with datasheet)
• Compatible Circuit Breaker Series: Compact NSX 400/630
• Protection Functions: Overload, short-circuit, ground fault (specific settings and types to be confirmed via datasheet)
• Control Interface: Electronic

Applications & compatibility

This Micrologic 2.3 trip unit is essential for applications requiring robust and adjustable circuit protection within the Schneider Electric Compact NSX 400/630 framework. It is commonly deployed in industrial facilities, commercial buildings, and data centers to safeguard electrical panels, machinery, and critical loads from overcurrent events.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432081 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
