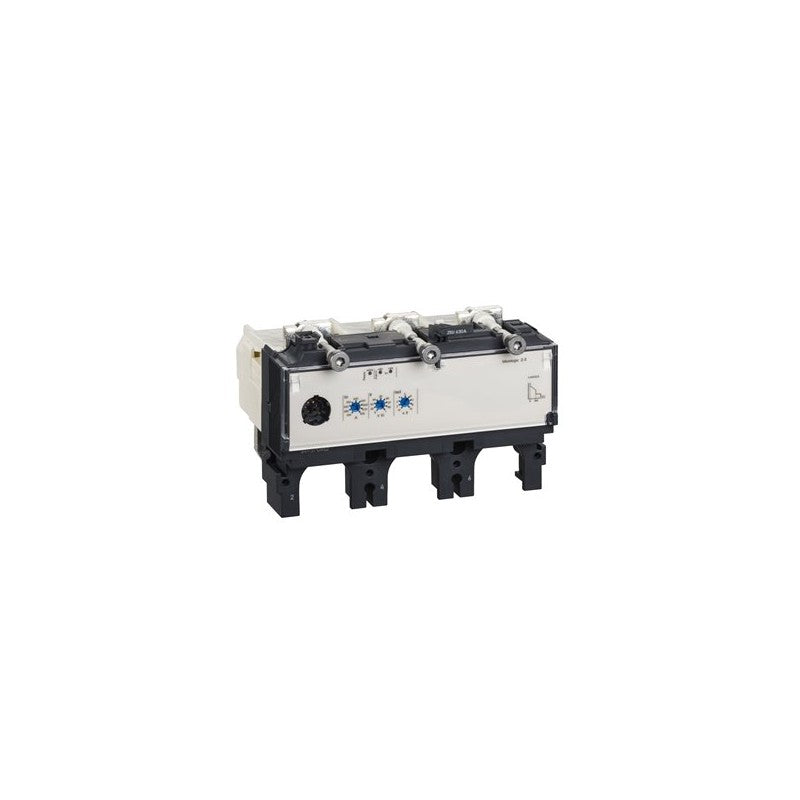

The Schneider Electric Micrologic 2.3 trip unit is an electronic control module designed for Compact NSX 400/630 series circuit breakers. This 3-pole, 3d unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to integrate seamlessly with the NSX breaker platform, offering precise current monitoring and trip functions.

Technical details

• Series: Micrologic 2.3
• Type: Electronic Trip Unit
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 400/630
• Number of Poles: 3
• Poles Configuration: 3d (3 Normally Open, 3 Normally Closed auxiliary contacts)
• Current Rating: 250A
• Protection Functions: Overload, Short-circuit (specific trip curves and settings should be verified against manufacturer datasheet)
• Control Interface: Electronic

Applications & compatibility

This Micrologic 2.3 trip unit is essential for applications requiring reliable circuit protection in industrial and commercial power distribution systems. It is commonly found in motor control centers, main distribution panels, and branch circuit protection for machinery such as packaging lines, HVAC systems, and material handling equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432082 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
