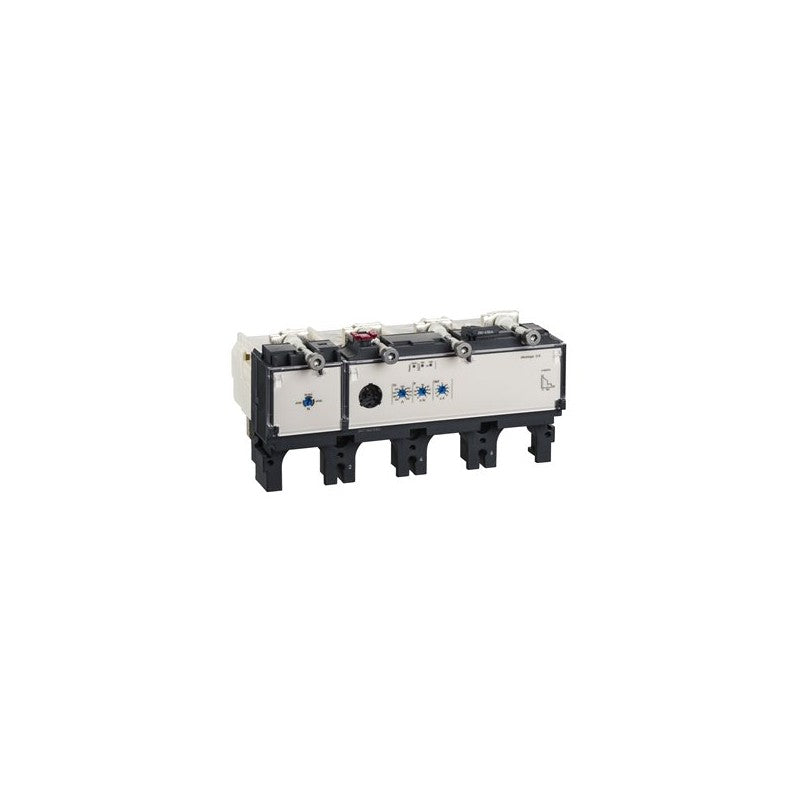

The Schneider Electric Micrologic 2.3 trip unit is an electronic control module designed for the Compact NSX 630 circuit breaker series. This specific unit is configured for 4-pole applications and features a 630A rating, providing essential protection and control for electrical distribution systems. It is commonly integrated into industrial power distribution panels and motor control centers.

Technical details

• Series: Micrologic 2.3
• Compatible Circuit Breaker Series: Compact NSX 630
• Type: Electronic Trip Unit
• Number of Poles: 4
• Current Rating: 630 Amperes
• Protection Functions: Long-time pickup, short-time pickup, instantaneous pickup (details require datasheet verification)
• Control Features: Overload protection, short-circuit protection (details require datasheet verification)
• Form Factor: Designed for integration within Compact NSX 630 frame sizes.

Applications & compatibility

This Micrologic 2.3 trip unit is suitable for use in a wide range of industrial environments, including manufacturing facilities, data centers, and commercial buildings. It provides critical protection for electrical circuits in applications such as main distribution panels, sub-distribution boards, and motor feeders for machinery on production lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432084 or contact our technical team for cross-reference assistance with compatible Compact NSX 630 components.
