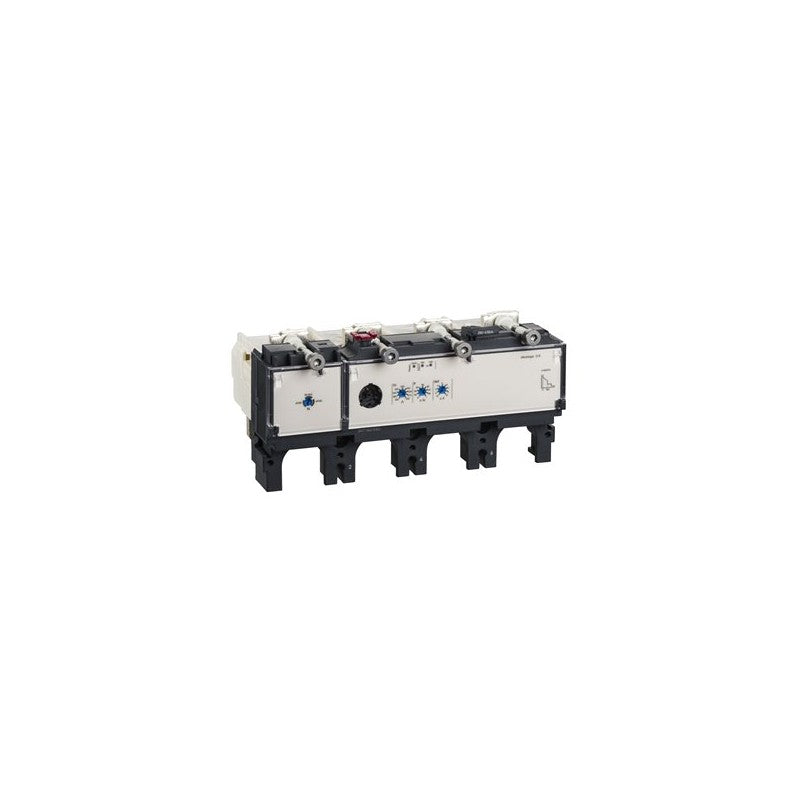

The Schneider Electric Micrologic 2.3 trip unit is designed for use with Compact NSX 400/630 circuit breakers, providing electronic protection for 4-pole configurations. This trip unit is engineered for precise current monitoring and fault interruption, ensuring the safety and reliability of electrical distribution systems. Its advanced electronic sensing capabilities offer enhanced performance over thermal-magnetic trip units.

Technical details

• Trip Unit Type: Electronic Micrologic 2.3
• Compatible Circuit Breaker Series: Schneider Electric Compact NSX 400/630
• Number of Poles: 4-pole (4d configuration)
• Current Rating: 250A
• Protection Functions: Overload, short-circuit, ground-fault (specific settings require verification against manufacturer datasheet)
• Control Voltage: Requires verification against manufacturer datasheet
• Communication Protocol: Requires verification against manufacturer datasheet
• Mounting Type: Requires verification against manufacturer datasheet

Applications & compatibility

This Micrologic 2.3 trip unit is integral to electrical protection schemes in commercial and industrial facilities, including manufacturing plants, data centers, and building management systems. It is commonly found in applications requiring robust and adjustable circuit protection for main feeders and distribution circuits within the Compact NSX breaker family.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432086 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
