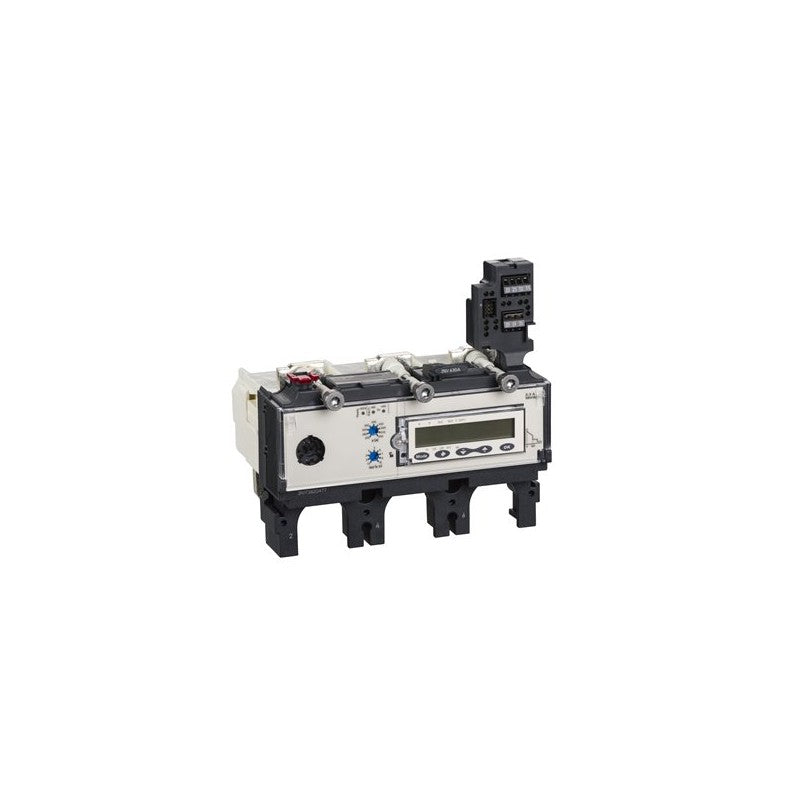

The Schneider Electric LV432090 is an electronic trip unit designed for use with Compact NSX 630 A circuit breakers. This Micrologic 5.3 A model provides advanced protection and control capabilities for electrical distribution systems. It is engineered to integrate seamlessly into the NSX platform, offering reliable performance in demanding industrial environments.

Technical details

• Trip Unit Type: Micrologic 5.3 A
• Series: Compact NSX
• Compatible Circuit Breaker Rating: 630 A
• Number of Poles: 3
• Protection Functions: Electronic trip unit with adjustable settings for overcurrent protection (long-time, short-time, instantaneous) and ground fault protection. Specific adjustable parameters for the Micrologic 5.3 A should be verified against the manufacturer's datasheet.
• Current Rating: 630 A
• Configuration: 3d (referring to the number of poles and potentially internal configuration details, verify with datasheet)

Applications & compatibility

This trip unit is specifically designed for Schneider Electric Compact NSX 630 A circuit breakers, commonly found in main distribution panels, motor control centers, and sub-distribution boards. Its application spans various industries including manufacturing, data centers, and commercial buildings where robust circuit protection is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432090 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
