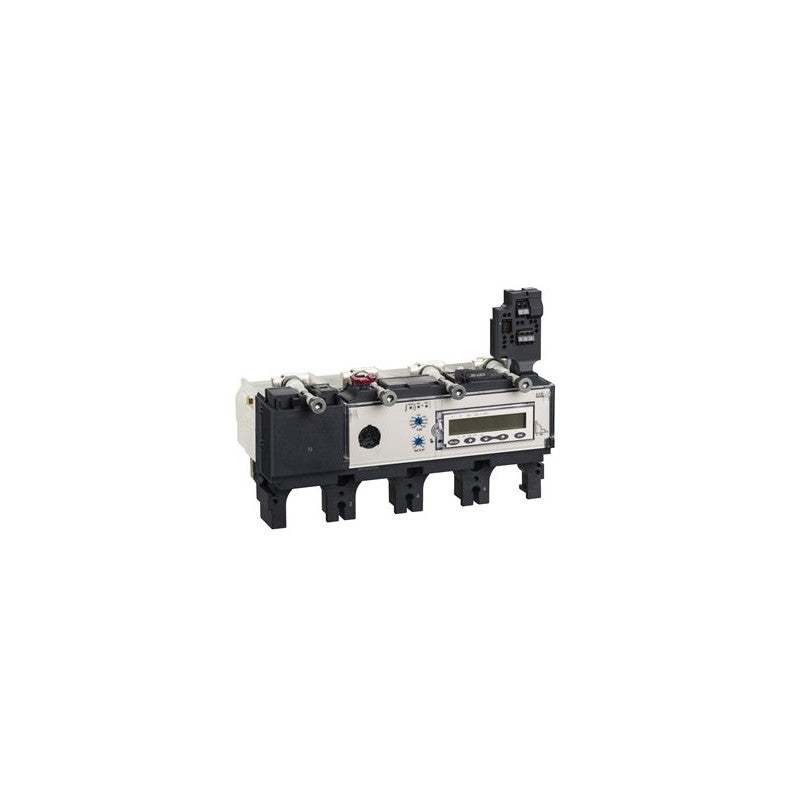

The Schneider Electric LV432099 is a Micrologic 5.3 E trip unit designed for use with Compact NSX 630 circuit breakers. This electronic trip unit provides advanced protection and control capabilities for electrical distribution systems. It is engineered to integrate seamlessly into the Compact NSX platform, offering reliable performance in demanding industrial environments.

Technical details

• Trip Unit Series: Micrologic 5.3 E
• Compatible Circuit Breaker Series: Compact NSX 630
• Type: Electronic Trip Unit
• Number of Poles: 4
• Pole Configuration: 4d (likely indicating 4 normally open auxiliary contacts or similar functionality, buyer to verify against datasheet)
• Current Rating: 630A
• Protection Functions: Includes adjustable long-time, short-time, instantaneous, and ground-fault protection settings (specific ranges and features to be confirmed via manufacturer datasheet).
• Display: Integrated digital display for status and settings.

Applications & compatibility

This Micrologic 5.3 E trip unit is specifically designed for the Schneider Electric Compact NSX 630 series of molded case circuit breakers. It is suitable for use in main distribution panels, sub-distribution boards, and motor control centers across various industries including manufacturing, data centers, and commercial buildings where precise and reliable circuit protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432099 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
