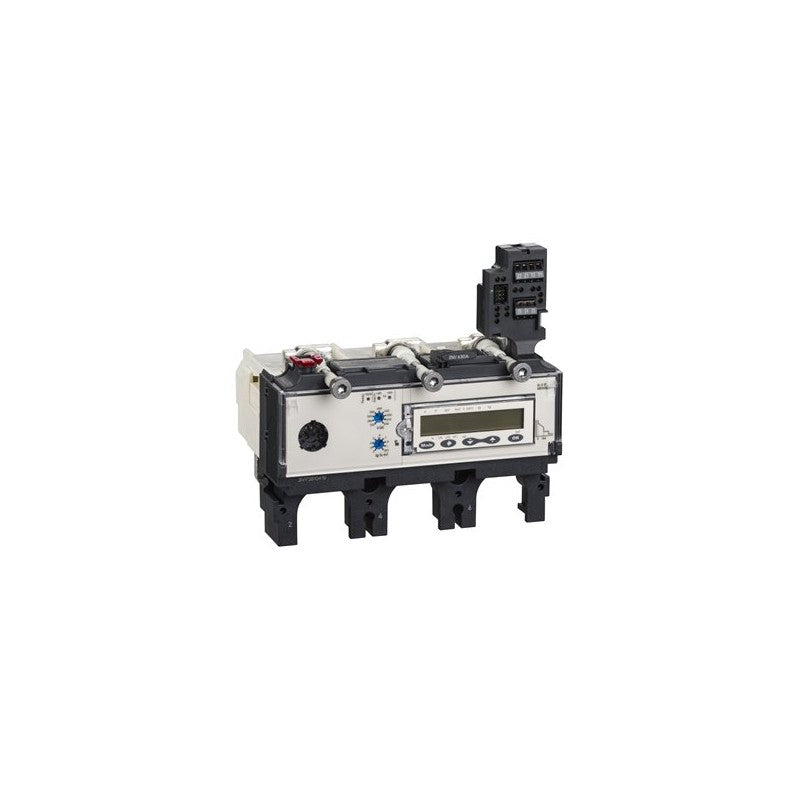

The Schneider Electric Micrologic 6.3 E trip unit is designed for use with Compact NSX 630 circuit breakers, providing advanced electronic protection. This 3-pole unit features a 630A rating and is engineered for demanding industrial environments where precise circuit protection is paramount.

Technical details

• Series: Micrologic 6.3 E
• Type: Electronic Trip Unit
• Current Rating: 630 Amperes
• Poles: 3
• Compatible Circuit Breaker Series: Compact NSX 630
• Protection Functions: Ground Fault, Overload, Short Circuit (specific settings require datasheet verification)
• Display: Integrated digital display for status and settings
• Communication: Fieldbus compatibility may be available; consult manufacturer datasheet for specific protocols.

Applications & compatibility

This trip unit is integral to the protection schemes of Compact NSX 630 circuit breakers, commonly found in power distribution panels for manufacturing facilities, data centers, and commercial buildings. It ensures reliable operation and safety for motor control circuits, lighting systems, and general power distribution applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432108 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
