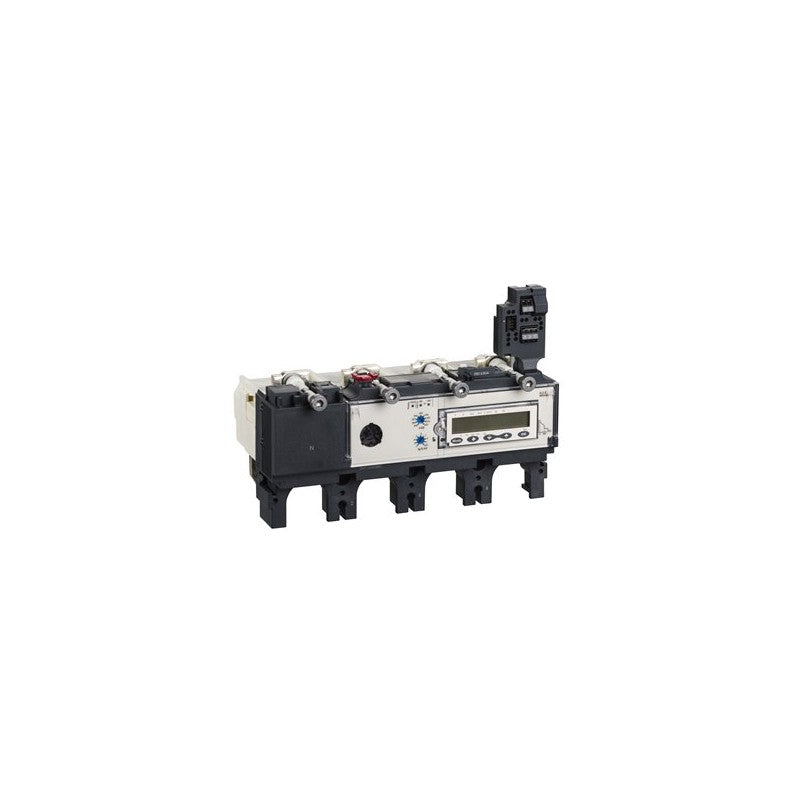

The Schneider Electric Micrologic 6.3 E trip unit is an electronic control module designed for Compact NSX 400/630 series circuit breakers. This specific model, LV432112, is engineered to provide advanced protection and control for electrical distribution systems. It integrates sophisticated trip functions within a compact form factor, suitable for demanding industrial environments.

Technical details

• Series: Micrologic 6.3 E
• Type: Electronic Trip Unit
• Rating: 400 Amperes (A)
• Configuration: 4 Poles (4d)
• Compatible Circuit Breaker Series: Compact NSX 400/630
• Protection Functions: Includes Long-time, Short-time, Instantaneous, and Ground Fault protection settings.
• Display: Integrated digital display for real-time current monitoring and trip event logging.
• Adjustability: Offers adjustable settings for various protection parameters to suit specific application requirements.

Applications & compatibility

This Micrologic 6.3 E trip unit is essential for applications requiring precise and reliable overcurrent and ground fault protection in medium-voltage electrical distribution systems. It is commonly deployed in motor control centers, main distribution panels, and branch circuit protection within manufacturing facilities, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432112 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
