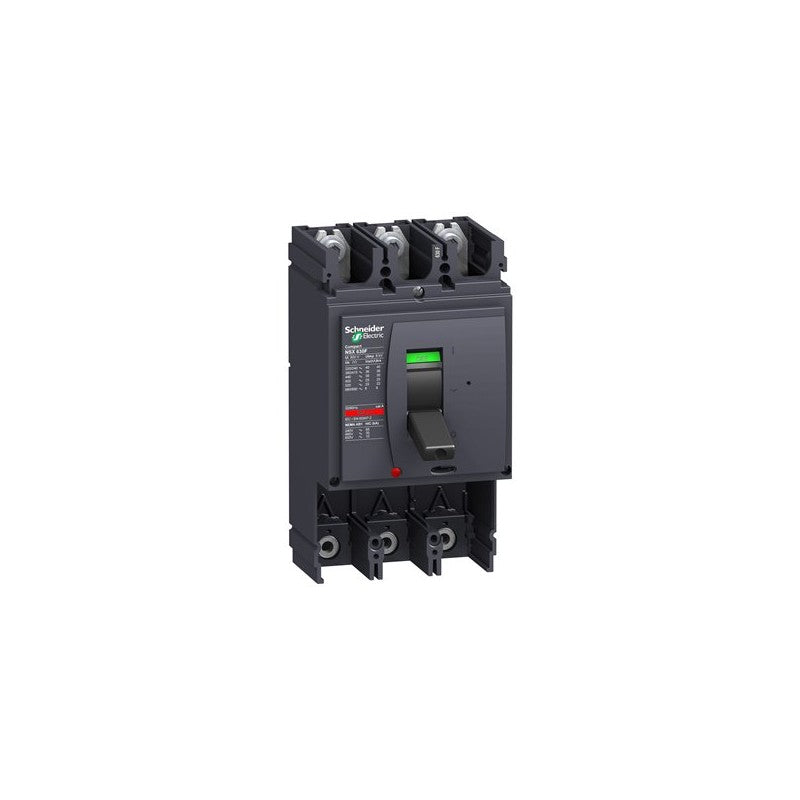

The Schneider Electric Compact NSX630N is a basic circuit breaker frame designed for robust electrical protection in demanding industrial environments. This 3-pole unit serves as the foundation for a complete circuit breaker assembly, requiring a separate trip unit for full functionality. It is engineered to handle significant fault currents, making it suitable for main distribution or feeder protection in various industrial settings.

Technical details

• Series: Compact NSX
• Model: NSX630N
• Number of Poles: 3
• Interrupting Capacity: 50 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Current Rating: 630 A
• Configuration: Basic frame, requires separate trip unit
• Voltage Class: 415 VAC

Applications & compatibility

This NSX630N basic frame is integral to power distribution systems found in manufacturing plants, data centers, and commercial buildings. It is commonly employed in main switchboards, motor control centers, and as a feeder breaker for large machinery such as pumps, compressors, and HVAC systems. Compatibility is dependent on the selected trip unit and associated accessories, which must be ordered separately.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432803 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
