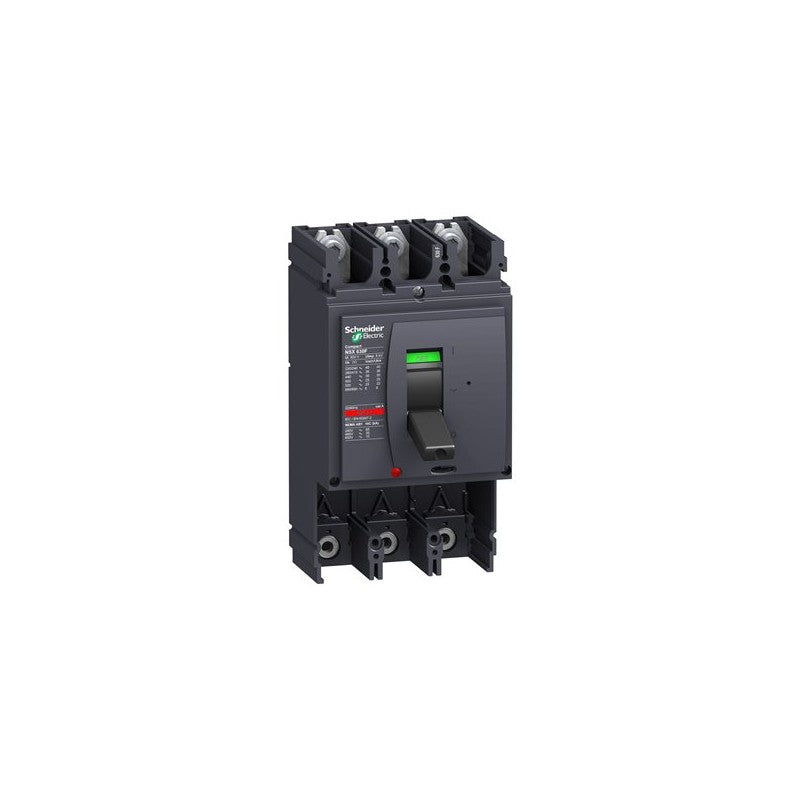

The Schneider Electric Compact NSX630H is a basic frame circuit breaker designed for robust electrical protection in demanding industrial environments. This 3-pole unit is engineered to handle significant fault currents, providing essential safety for power distribution systems. It serves as a foundational component for building complete circuit breaker assemblies within the NSX series.

Technical details

• Series: Compact NSX
• Model: NSX630H
• Frame Size: 630 A
• Number of Poles: 3
• Interrupting Capacity: 70 kA at 415 VAC 50/60 Hz
• Configuration: Basic frame, supplied without a trip unit
• Voltage Rating: 415 VAC
• Frequency: 50/60 Hz

Applications & compatibility

This circuit breaker frame is integral to power distribution and motor protection applications across various industries, including manufacturing plants, data centers, and commercial buildings. It is compatible with a range of Schneider Electric trip units and accessories, allowing for customization to meet specific protection requirements for machinery such as pumps, fans, and conveyor systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432804 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
