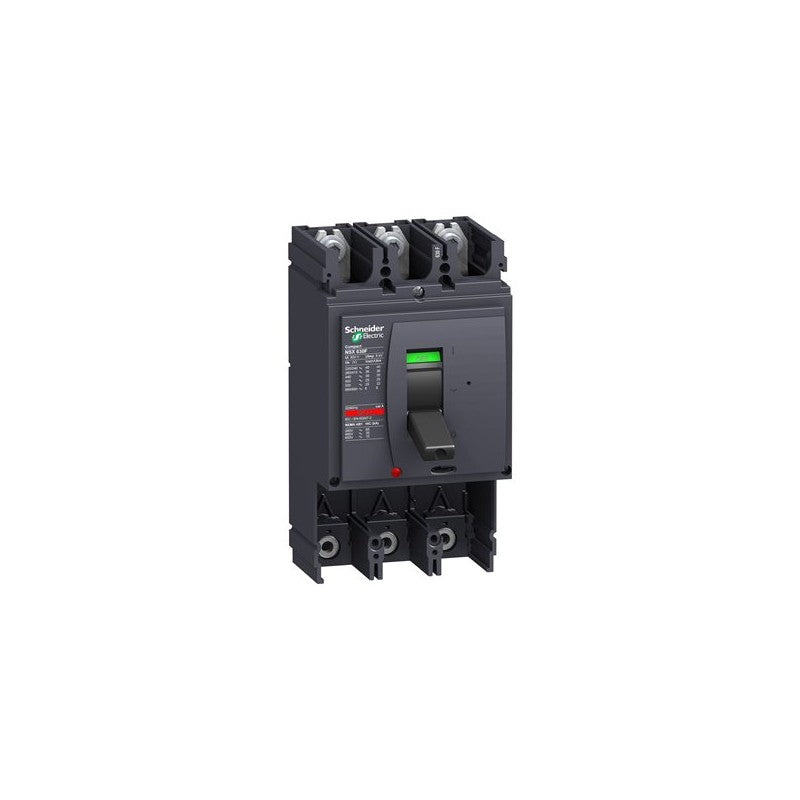

The Schneider Electric Compact NSX630L circuit breaker frame provides essential protection for electrical distribution systems. Designed for robust industrial environments, this 3-pole basic frame is rated for 630 Amperes and offers a significant interrupting capacity of 150 kA at 415 VAC, 50/60 Hz. It serves as a foundational component for building custom circuit breaker configurations.

Technical details

• Series: Compact NSX
• Model Designation: NSX630L
• Number of Poles: 3
• Rated Current: 630 A
• Interrupting Capacity: 150 kA
• Voltage Rating: 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, without trip unit

Applications & compatibility

This circuit breaker frame is suitable for use in main distribution panels, motor control centers, and sub-distribution boards across various industrial sectors. It is designed to accommodate a wide range of trip units, allowing for tailored protection schemes for machinery and electrical infrastructure in manufacturing plants, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432805 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
