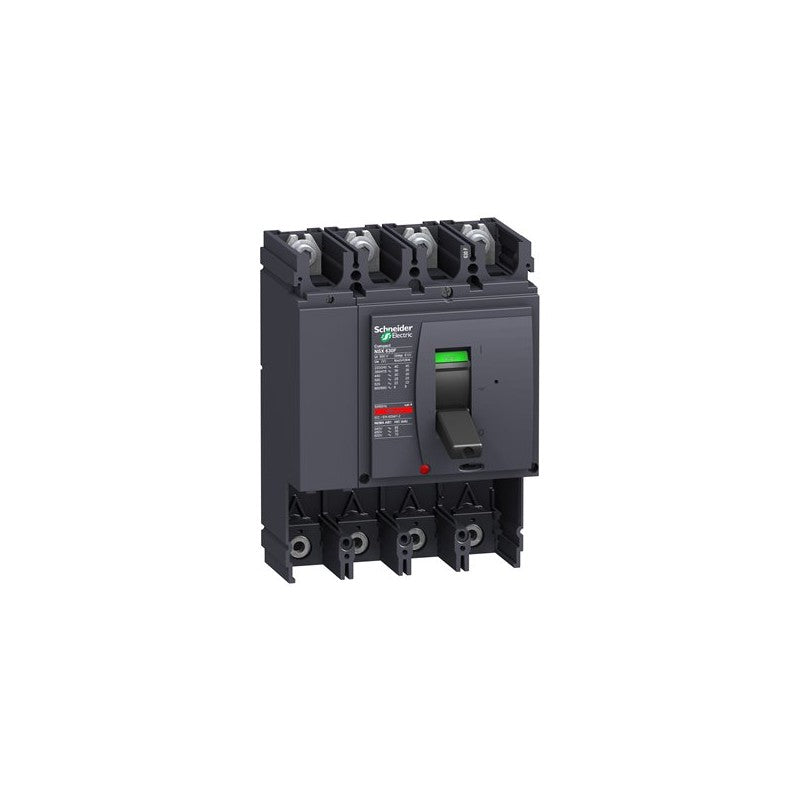

The Schneider Electric Compact NSX630N is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is engineered to handle significant fault currents, making it suitable for main distribution or feeder protection in demanding applications. Its construction as a basic frame indicates it requires a separate trip unit for full functionality, allowing for customization based on specific protection needs.

Technical details

• Series: Compact NSX
• Model: NSX630N
• Poles: 4
• Interrupting Capacity: 50 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Current Rating: 630 A
• Configuration: Basic frame, requires separate trip unit
• Voltage Compatibility: Designed for 415 VAC systems

Applications & compatibility

This circuit breaker frame is commonly specified for use in power distribution panels, motor control centers, and as a protective device for large machinery. Its high interrupting capacity makes it suitable for applications where significant short-circuit currents are anticipated, such as in manufacturing plants, data centers, or heavy industrial facilities. Compatibility with various NSX trip units allows for tailored protection schemes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432808 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
