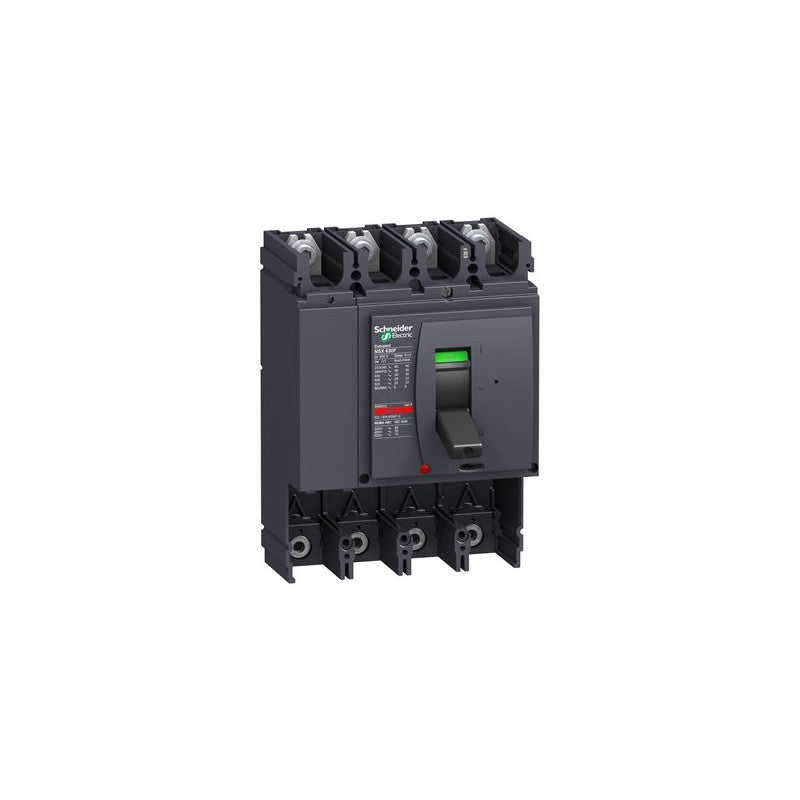

The Schneider Electric Compact NSX630L is a basic frame circuit breaker designed for robust electrical protection in demanding industrial environments. This 4-pole unit is part of the Compact NSX series, engineered to provide reliable circuit interruption. It offers a significant interrupting capacity, making it suitable for applications requiring high fault current handling.

Technical details

• Series: Compact NSX
• Model: NSX630L
• Frame Size: 630 A
• Number of Poles: 4
• Interrupting Capacity: 150 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, supplied without a trip unit
• Voltage Class: 415 VAC

Applications & compatibility

This circuit breaker frame is commonly integrated into power distribution systems for manufacturing plants, data centers, and large commercial buildings. It serves as a foundational component for custom-configured protection solutions, compatible with various trip units to meet specific application requirements in motor control centers, switchboards, and generator protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432810 or contact our technical team for cross-reference assistance with compatible Compact NSX series components.
