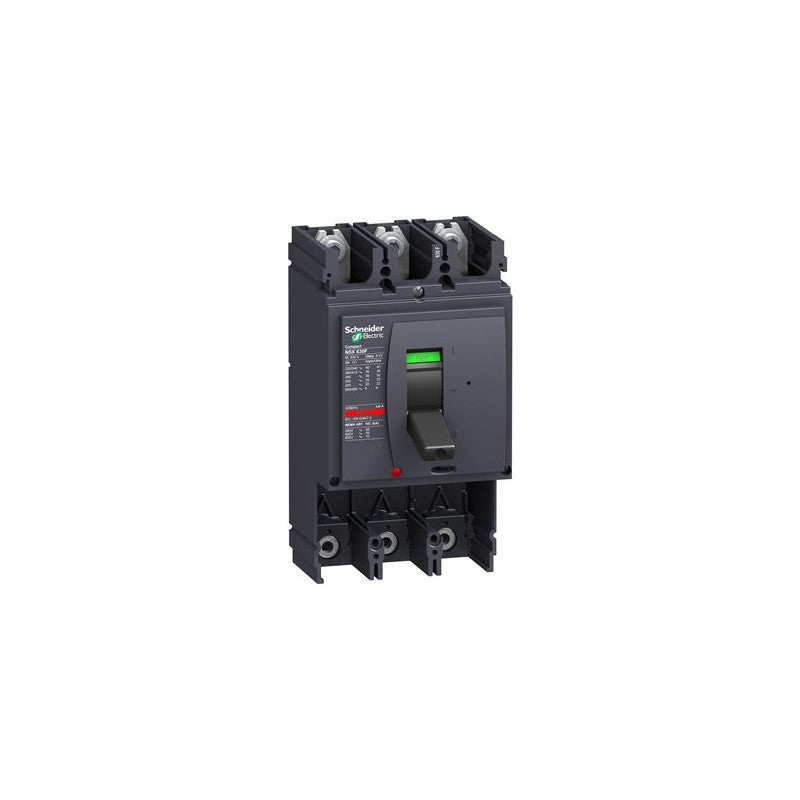

The Schneider Electric Compact NSX630F is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 3-pole unit is engineered to handle significant fault currents, making it suitable for main distribution or feeder protection in demanding applications. Its construction without an integrated trip unit allows for flexible configuration with external Micrologic trip units, enabling tailored protection settings.

Technical details

• Series: Compact NSX
• Model: NSX630F
• Number of Poles: 3
• Rated Current: 630 A
• Breaking Capacity: 36 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Configuration: Basic frame, without trip unit
• Voltage Compatibility: Designed for 415 VAC systems

Applications & compatibility

This circuit breaker frame is commonly integrated into main power distribution panels, motor control centers, and switchgear assemblies within manufacturing facilities, process plants, and heavy industry. Its compatibility with various Micrologic trip units allows for precise application in systems requiring specific overcurrent and short-circuit protection, such as on packaging lines, in material handling systems, or for large motor feeders.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432813 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
