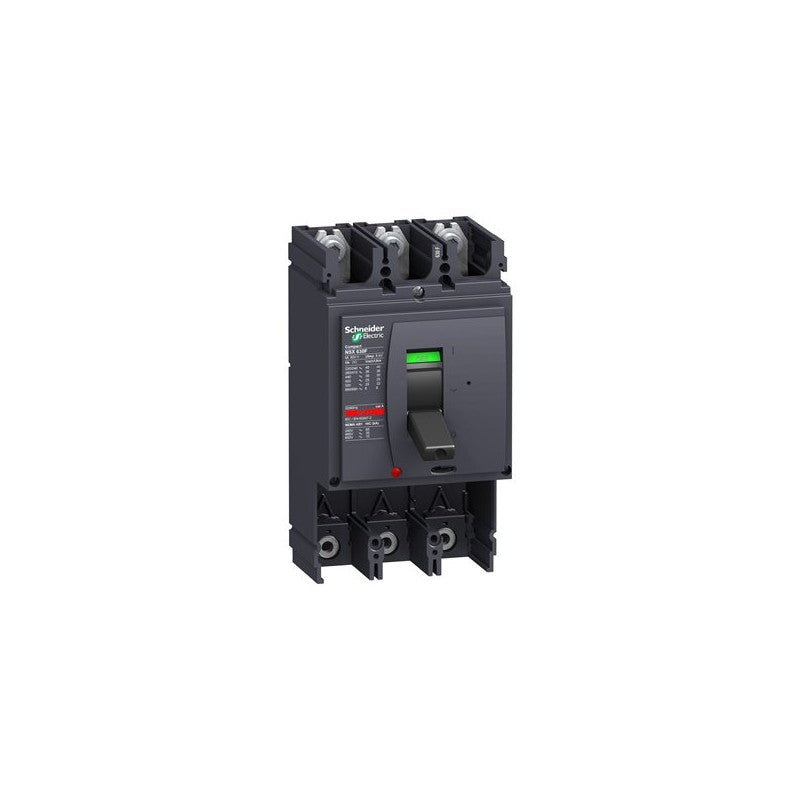

The Schneider Electric Compact NSX630S circuit breaker frame provides a robust foundation for power distribution and protection in demanding industrial environments. Designed as a basic frame, this component is engineered to house specific trip units, allowing for tailored protection settings. It is a key element in ensuring the safe and reliable operation of electrical systems within manufacturing facilities and heavy industry.

Technical details

• Series: Compact NSX
• Model Designation: NSX630S
• Number of Poles: 3
• Rated Current: 630 A
• Short-Circuit Current Rating (Icu): 100 kA at 415 VAC
• Frequency Rating: 50/60 Hz
• Frame Type: Basic frame, requires separate trip unit
• Voltage Compatibility: Suitable for systems up to 415 VAC

Applications & compatibility

This circuit breaker frame is commonly integrated into main distribution panels, motor control centers, and sub-distribution boards for a wide range of industrial machinery. Its high interrupting capacity makes it suitable for applications requiring protection against significant fault currents, such as those found in heavy manufacturing, chemical processing, and large-scale material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432814 or contact our technical team for cross-reference assistance with compatible Compact NSX trip units and accessories.
