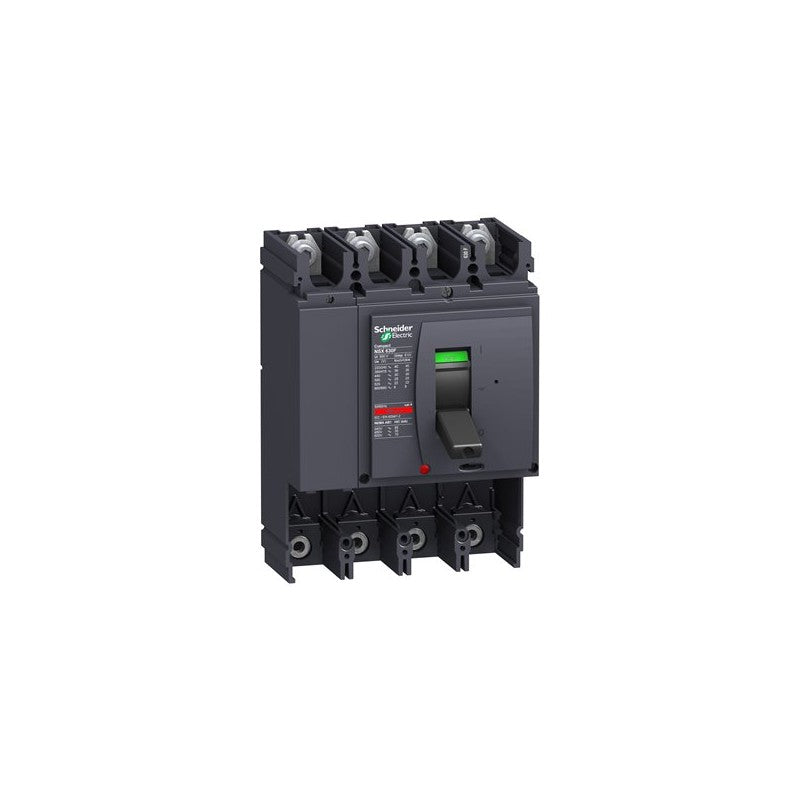

The Schneider Electric Compact NSX630F is a basic frame circuit breaker designed for robust electrical protection in industrial environments. This 4-pole unit is engineered to handle fault currents up to 36 kA at 415 VAC, making it suitable for demanding power distribution applications. It serves as a foundational component for building custom circuit breaker assemblies.

Technical details

• Series: Compact NSX
• Model: NSX630F
• Configuration: Basic Frame
• Poles: 4
• Interrupting Capacity: 36 kA at 415 VAC, 50/60 Hz
• Current Rating: 630 A
• Trip Unit: Not included; requires separate purchase and integration.
• Voltage Rating: 415 VAC

Applications & compatibility

This circuit breaker frame is commonly integrated into power distribution panels for manufacturing facilities, data centers, and commercial buildings. It is compatible with various Schneider Electric trip units and accessories to create customized protection solutions for motor control centers, main distribution boards, and sub-distribution panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432815 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
