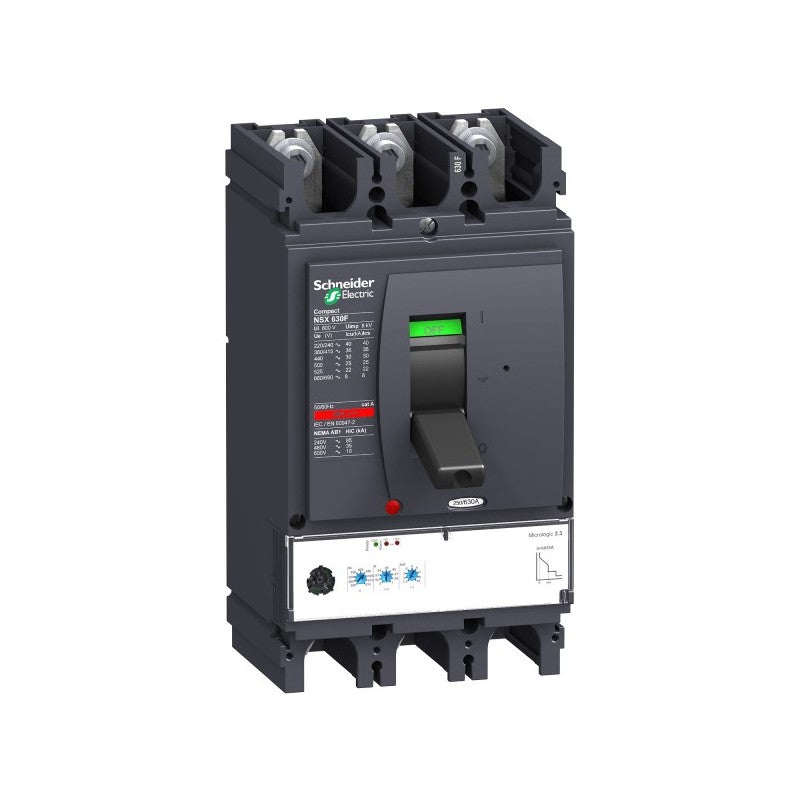

The Schneider Electric ComPact NSX630F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 3-pole device, identified by the part number LV432876, features a breaking capacity of 36 kA at 415 VAC, ensuring safety and operational continuity. It integrates the MicroLogic 2.3 electronic trip unit, providing advanced control and protection capabilities.

Technical details

• Series: ComPact NSX
• Model: NSX630F
• Number of Poles: 3d (3 poles)
• Rated Operational Voltage: 415 VAC
• Breaking Capacity: 36 kA at 415 VAC
• Trip Unit: MicroLogic 2.3
• Current Rating: 630 A
• Frame Size: 630

Applications & compatibility

This circuit breaker is suitable for a wide range of applications including motor control centers, distribution switchboards, and power distribution units within manufacturing facilities, data centers, and infrastructure projects. Its specifications make it compatible with systems requiring reliable overcurrent and short-circuit protection for circuits up to 630 Amps.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432876 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
