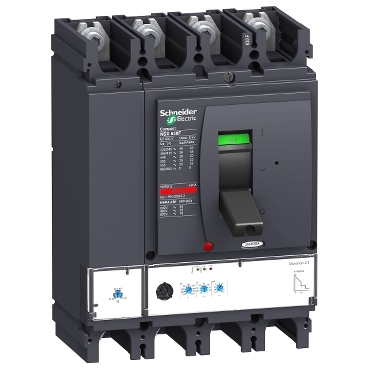

The Schneider Electric Compact NSX630F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the NSX series, offers a significant interrupting capacity of 36 kA at 415 VAC, ensuring safety and operational continuity for critical power distribution systems. Its integrated Micrologic 2.3 trip unit provides advanced protection and control functionalities.

Technical details

• Series: Compact NSX
• Model: NSX630F
• Poles: 4
• Interrupting Capacity: 36 kA at 415 VAC
• Trip Unit: Micrologic 2.3
• Current Rating: 630 A
• Configuration: 4d (likely indicating 4 normally open auxiliary contacts)
• Voltage Rating: 415 VAC

Applications & compatibility

This circuit breaker is commonly deployed in main distribution panels, motor control centers, and power distribution units for manufacturing facilities, data centers, and infrastructure projects. It is designed to protect electrical circuits and equipment from overloads and short circuits in systems requiring high interrupting capacity and reliable tripping characteristics.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432877 or contact our technical team for cross-reference assistance with compatible NSX series components.
