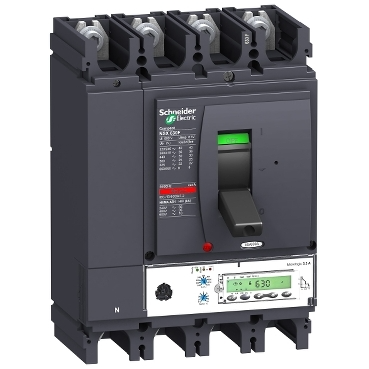

The Schneider Electric ComPact NSX630F circuit breaker is engineered for robust protection in demanding industrial environments. This 4-pole unit features a MicroLogic 5.3A electronic trip unit and is rated for 630A, providing essential overcurrent and short-circuit protection. Its design is suitable for applications requiring reliable circuit interruption and fault management within electrical distribution systems.

Technical details

• Series: ComPact NSX
• Model Designation: NSX630F
• Rated Current: 630 Amperes
• Number of Poles: 4
• Breaking Capacity: 36 kA at 415 VAC
• Trip Unit: MicroLogic 5.3A (Electronic)
• Configuration: 4d (4 poles, 4 disconnects)
• Voltage Rating: 415 VAC

Applications & compatibility

This ComPact NSX630F circuit breaker is commonly deployed in main distribution panels, motor control centers, and sub-distribution boards for industrial facilities. It is designed to protect electrical circuits in applications such as manufacturing plants, data centers, and infrastructure projects where reliable power distribution and fault isolation are critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432879 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
