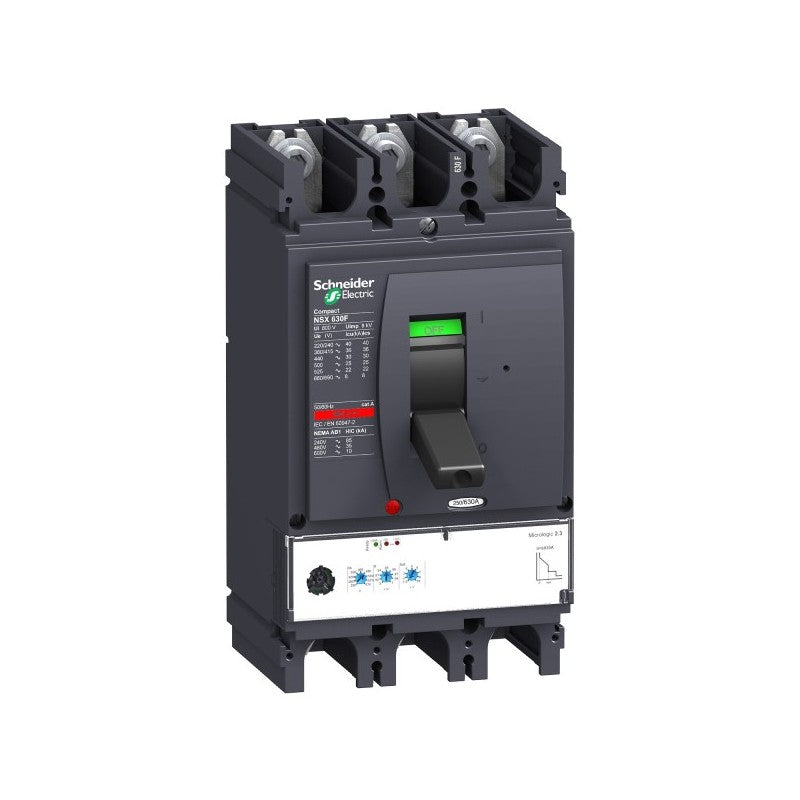

The Schneider Electric ComPact NSX630N circuit breaker is engineered for robust power distribution and protection in demanding industrial environments. This 3-pole unit, featuring a MicroLogic 2.3 trip unit, is designed to safeguard electrical systems against overcurrent and short-circuit faults. Its application is critical in ensuring the operational integrity of machinery and electrical infrastructure within manufacturing facilities and process plants.

Technical details

• Series: ComPact NSX
• Model Designation: NSX630N
• Number of Poles: 3
• Interrupting Capacity: 50 kA at 415 VAC
• Trip Unit: MicroLogic 2.3
• Rated Current: 630 A
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)
• Voltage Rating: Suitable for 415 VAC systems

Applications & compatibility

This circuit breaker is commonly deployed in motor control centers, power distribution panels, and as a main breaker for equipment in sectors such as food and beverage processing, automotive manufacturing, and material handling. It is designed to integrate seamlessly into existing ComPact NSX systems, providing reliable protection for a wide range of industrial machinery and electrical distribution networks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV432893 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
