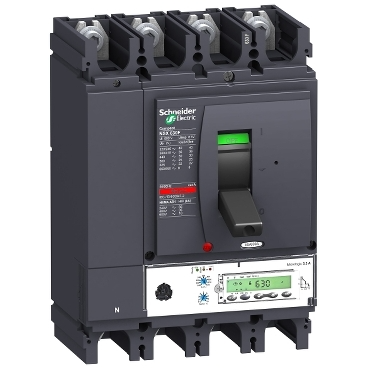

The Schneider Electric ComPact NSX630H circuit breaker is engineered for robust protection in demanding electrical distribution systems. This 4-pole breaker features a MicroLogic 5.3A electronic trip unit and a 630A current rating, designed to handle fault currents up to 70kA at 415VAC. Its inclusion in the ComPact NSX series signifies a commitment to reliable and efficient power management for industrial facilities.

Technical details

• Series: ComPact NSX
• Model: NSX630H
• Configuration: 4 poles (4d)
• Rated Current: 630 Amperes
• Trip Unit: MicroLogic 5.3A electronic trip unit
• Short-Circuit Current Rating (SCCR): 70kA at 415VAC
• Voltage Rating: 415VAC
• Interrupting Capacity: 70kA

Applications & compatibility

This Schneider Electric circuit breaker is suitable for use in main distribution panels, motor control centers, and sub-distribution boards within manufacturing plants, data centers, and commercial buildings. It provides essential overcurrent and short-circuit protection for critical electrical circuits, ensuring operational continuity and equipment safety in applications such as conveyor systems, HVAC units, and process machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV432902 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
