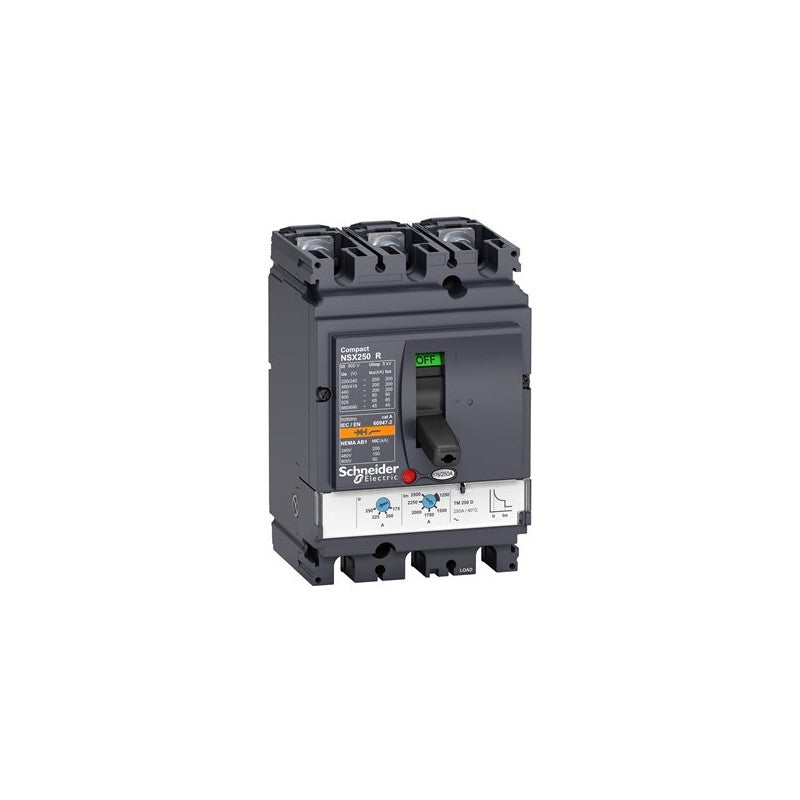

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. As part of the NSX series, this 3-pole unit offers a high interrupting capacity of 200 kA at 415 VAC, ensuring safety and operational continuity. It features a TMD trip unit with a 125 A rating, providing precise overcurrent and short-circuit detection.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 3d (3-pole)
• Voltage Rating: 415 VAC
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit Type: TMD
• Current Rating: 125 A
• Enclosure Type: Standard depth

Applications & compatibility

This circuit breaker is suitable for use in power distribution systems, motor control centers, and heavy machinery applications. It is commonly found in manufacturing plants, processing facilities, and infrastructure projects requiring reliable circuit protection. Verify compatibility with your specific control panel and system requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433470 or contact our technical team for cross-reference assistance with compatible NSX series components.
