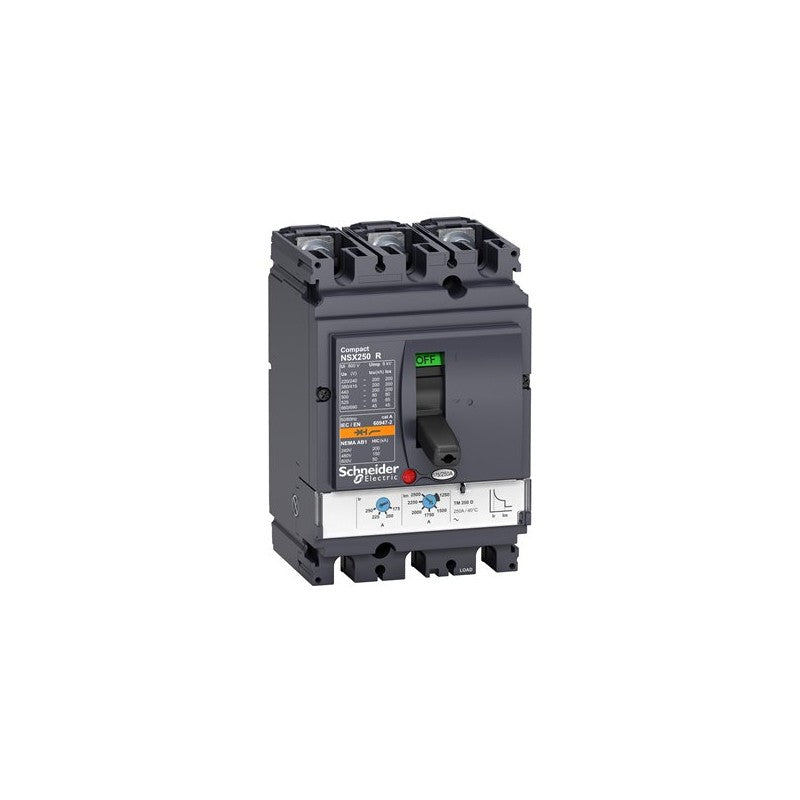

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding electrical distribution systems. This 3-pole unit offers a significant interrupting capacity of 200 kA at 415 VAC, ensuring safety and operational continuity in high-fault current scenarios. It features a TMD trip unit with a 160 A rating, providing precise overcurrent and short-circuit protection.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Number of Poles: 3
• Rated Voltage: 415 VAC
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 160 A
• Configuration: 3d (likely refers to the number of protected poles or internal contacts)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, sub-distribution boards, and motor control centers across various industrial sectors. It is commonly found in applications requiring reliable protection for circuits feeding machinery such as pumps, fans, conveyors, and processing equipment where high fault current levels are anticipated.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV433472 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
