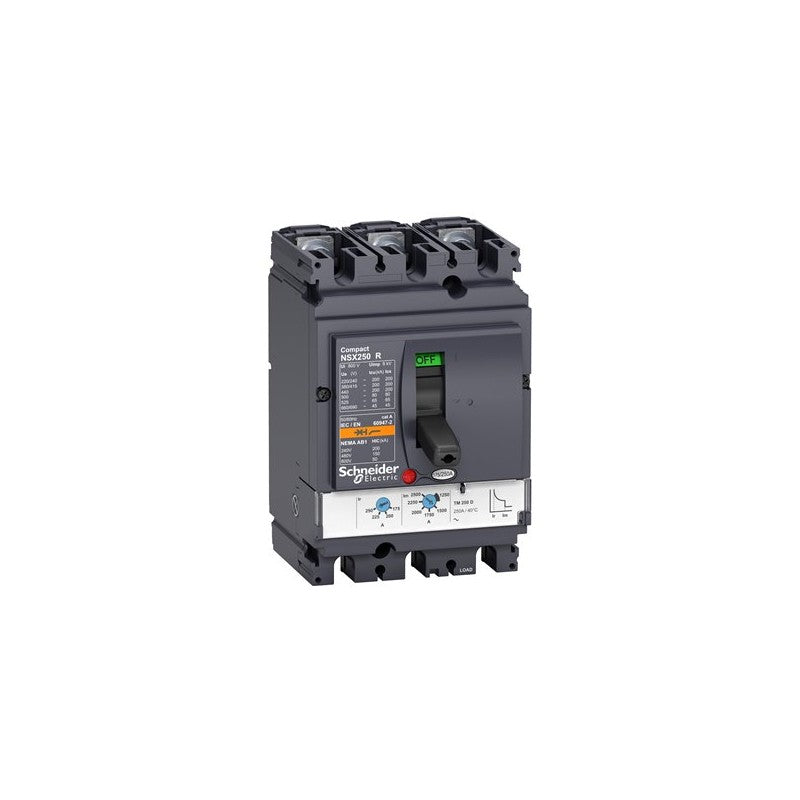

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit is part of the NSX series, designed to safeguard electrical circuits against overcurrents and short circuits. Its high interrupting capacity makes it suitable for applications requiring significant fault current handling capabilities.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Number of Poles: 3
• Rated Current: 200 A (TMD trip unit)
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit Type: TMD (Thermal Magnetic Differential)
• Voltage Rating: Up to 415 VAC
• Enclosure Type: Compact

Applications & compatibility

This circuit breaker is commonly deployed in motor control centers, power distribution panels, and as a main or branch circuit protector in manufacturing facilities. It is compatible with various Schneider Electric NSX accessories for enhanced functionality and integration into complex electrical systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433474 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
