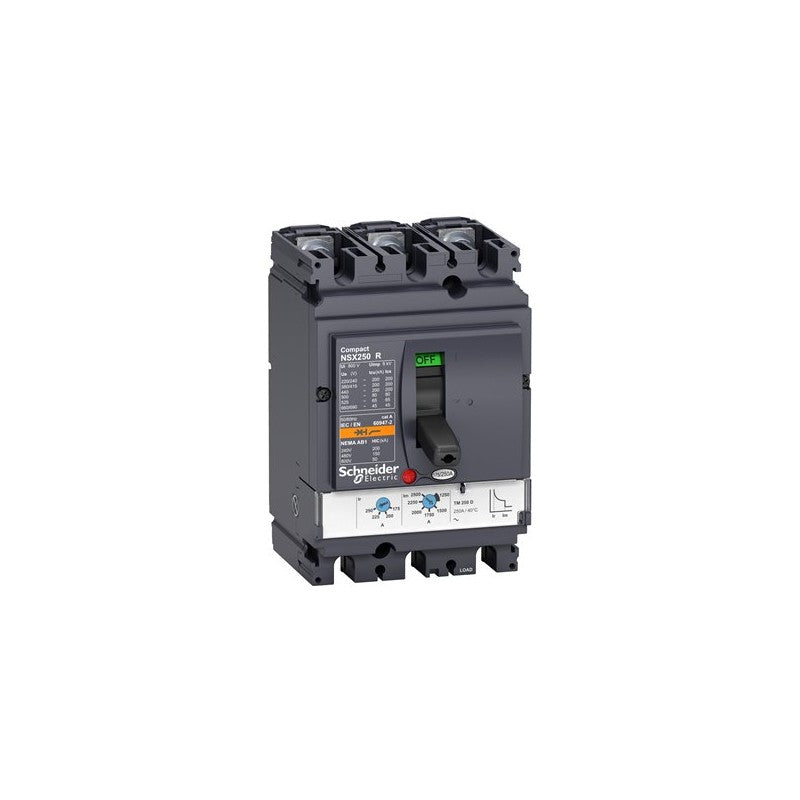

The Schneider Electric Compact NSX250R is a 3-pole circuit breaker designed for robust electrical protection in demanding industrial environments. This unit is part of the Compact NSX series, known for its reliable performance in power distribution and motor control applications. It offers a significant interrupting capacity, making it suitable for systems requiring high fault current withstand.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 3
• Trip Unit Type: TMD
• Current Rating: 250 A
• Interrupting Capacity: 200 kA at 415 VAC
• Voltage Rating: 415 VAC
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is commonly employed in industrial power distribution panels, motor control centers, and machinery requiring reliable overcurrent and short-circuit protection. Its high interrupting rating makes it suitable for applications with significant fault current potential, such as those found in manufacturing plants, processing facilities, and large-scale commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433476 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
