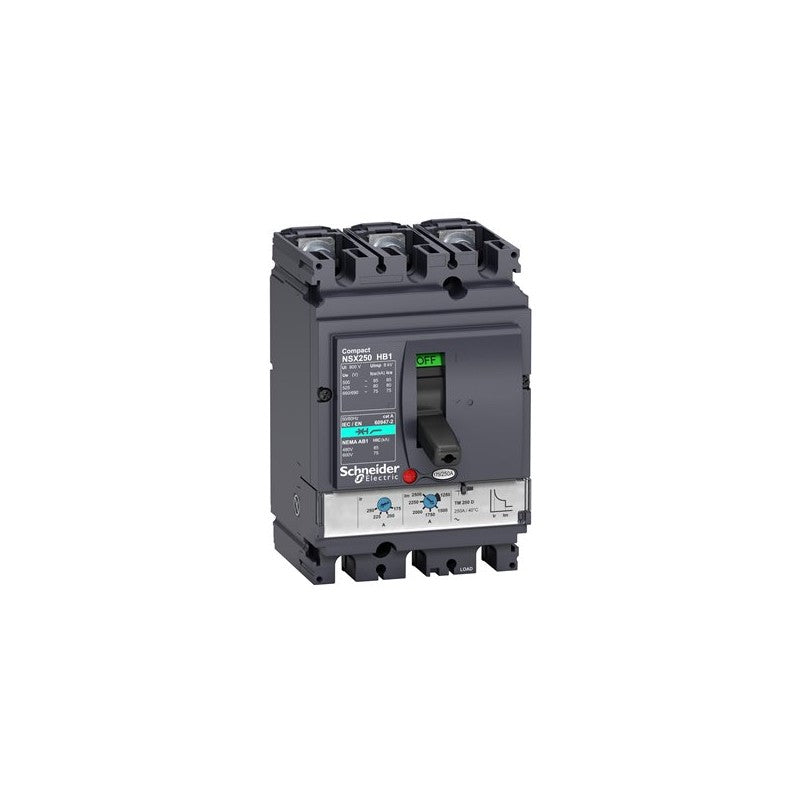

The Schneider Electric ComPact NSX250HB1 is a 3-pole circuit breaker designed for robust electrical protection in industrial environments. This unit features a 160A TMD trip unit and a high interrupting capacity of 85 kA at 500 VAC, making it suitable for demanding applications where fault current protection is critical.

Technical details

• Series: ComPact NSX
• Model: NSX250HB1
• Number of Poles: 3
• Interrupting Capacity: 85 kA at 500 VAC
• Trip Unit Type: TMD
• Trip Unit Rating: 160 A
• Voltage Rating: Up to 500 VAC
• Enclosure Type: Standard (verify datasheet for specific dimensions and mounting options)

Applications & compatibility

This circuit breaker is commonly employed in power distribution systems for manufacturing facilities, data centers, and commercial buildings. It provides essential protection for motor control circuits, main feeders, and branch circuits in applications such as conveyor systems, pump controls, and HVAC units where reliable fault interruption is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433480 or contact our technical team for cross-reference assistance with compatible ComPact NSX components.
