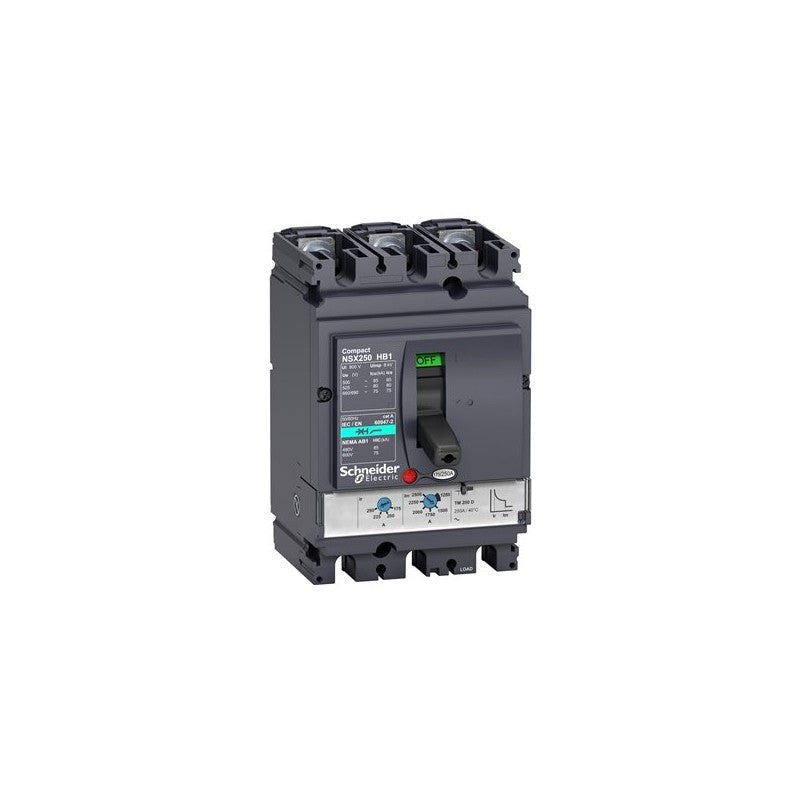

The Schneider Electric Compact NSX250HB1 is a 3-pole circuit breaker designed for robust electrical protection in industrial settings. This unit is part of the NSX series, known for its reliability and performance in demanding environments. It offers a significant interrupting capacity, making it suitable for applications where fault currents are a concern.

Technical details

• Series: Compact NSX
• Model: NSX250HB1
• Pole Configuration: 3-pole (3d)
• Interrupting Capacity: 85 kA at 500 VAC
• Trip Unit Type: TMD
• Current Rating: 250 A
• Voltage Rating: Up to 500 VAC
• Enclosure Type: Compact
• Protection Features: Thermal-magnetic trip unit for overcurrent and short-circuit protection.

Applications & compatibility

This circuit breaker is commonly specified for use in power distribution panels, motor control centers, and main incoming feeders for industrial facilities. Its high interrupting rating makes it ideal for systems with potential for significant fault currents, such as those found in manufacturing plants, data centers, and heavy industry applications. Ensure compatibility with your specific system voltage and fault current requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433484 or contact our technical team for cross-reference assistance with compatible NSX series components.
