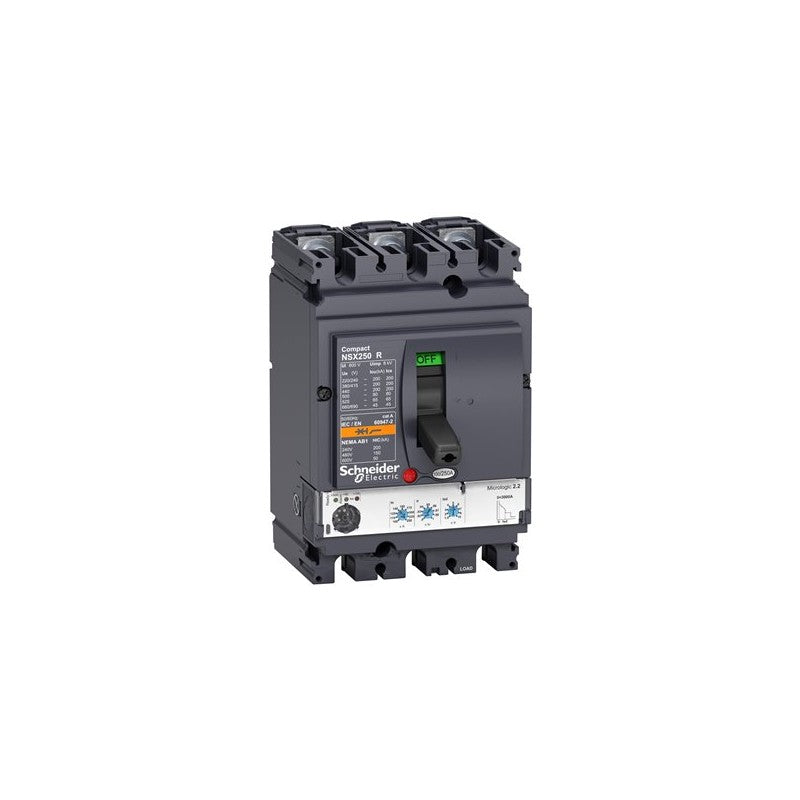

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit, identified by the LV433510 part number, is part of the Compact NSX series, known for its reliability and advanced protection capabilities. It is designed to safeguard electrical circuits against overcurrents and short circuits, ensuring operational continuity and equipment safety.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 3
• Rated Current: 100 A
• Trip Unit: Micrologic 2.2
• Interrupting Capacity: 200 kA at 415 VAC
• Configuration: 3d (refer to manufacturer datasheet for specific meaning of '3d')

Applications & compatibility

This circuit breaker is suitable for a wide range of industrial applications, including motor control centers, power distribution panels, and machinery protection. Its high interrupting capacity makes it ideal for systems with significant fault current potential, such as those found in manufacturing plants, data centers, and large commercial buildings. Compatibility with other components within the Schneider Electric NSX ecosystem should be verified against the manufacturer's specifications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433510 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
