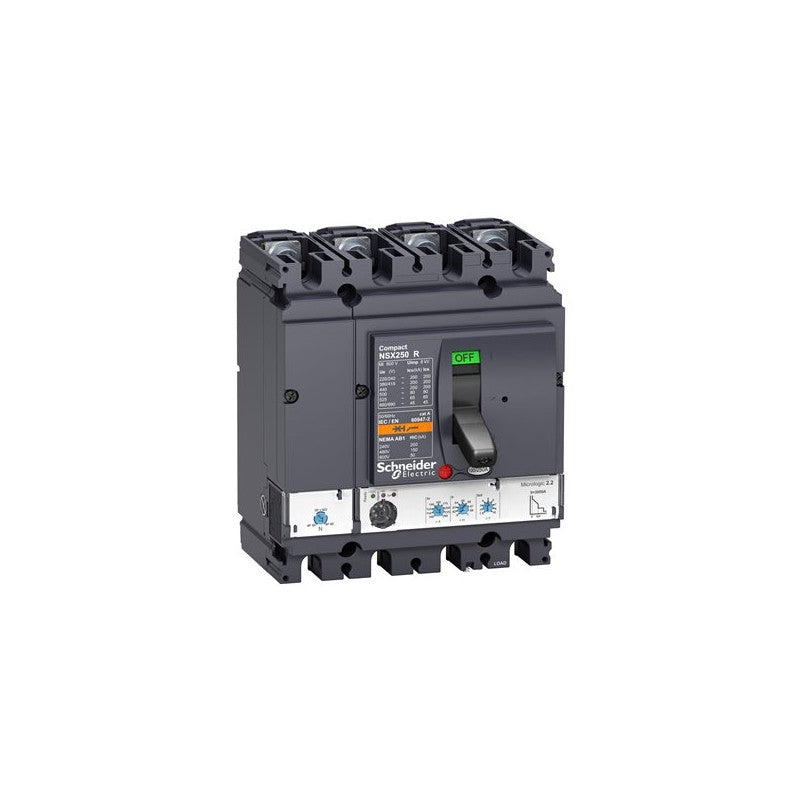

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 4-pole unit, part of the Compact NSX series, offers a significant interrupting capacity of 200 kA at 415 VAC, ensuring safety and operational continuity. It features the Micrologic 2.2 electronic trip unit, pre-set to a 100 A rating, providing precise overcurrent and short-circuit protection.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Number of Poles: 4
• Rated Voltage: 415 VAC
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit: Micrologic 2.2
• Trip Unit Rating: 100 A
• Configuration: 4d (refer to manufacturer datasheet for specific meaning of '4d' designation)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a protective device for large electrical loads. Its high interrupting rating makes it ideal for applications where fault currents are a significant concern, such as in manufacturing facilities, data centers, and utility substations. Ensure compatibility with your specific system requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433511 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
