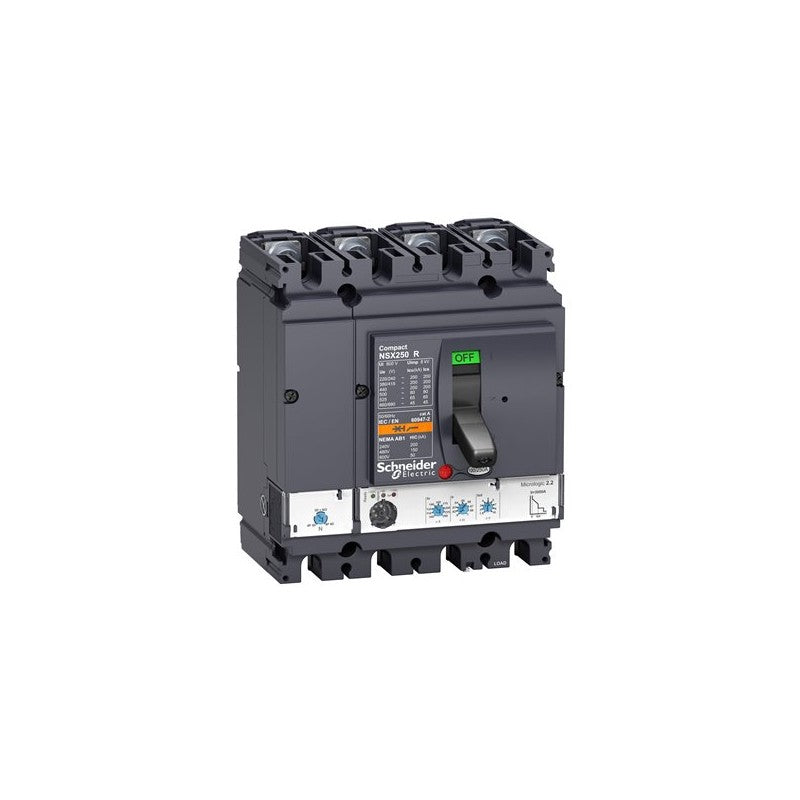

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 4-pole unit, identified by the LV433513 part number, is part of the Compact NSX series, known for its reliability and advanced protection capabilities. It is designed to interrupt fault currents up to 200 kA at 415 VAC, ensuring safety and operational continuity in critical power distribution systems.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 4
• Rated Current: 160 A (via Micrologic 2.2 trip unit)
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit: Micrologic 2.2
• Configuration: 4d (typically indicates 4 normally open auxiliary contacts)
• Voltage Class: 415 VAC

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a protective device for transformers and generators within industrial facilities. Its high interrupting rating makes it ideal for applications where significant fault currents are anticipated, such as in manufacturing plants, data centers, or utility substations. Ensure compatibility with your specific system requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433513 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
