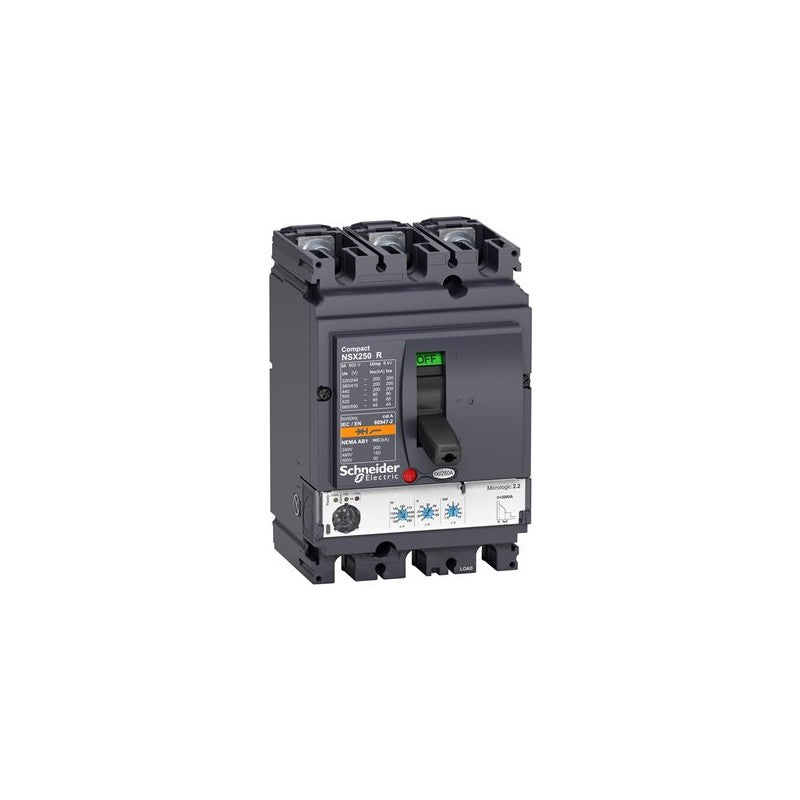

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole (3d) unit is part of the NSX series, designed to safeguard electrical systems against overcurrents and short circuits. Its high interrupting capacity makes it suitable for applications requiring significant fault current handling capabilities.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 3
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit: Micrologic 2.2 M
• Adjustable Trip Unit Current Rating: 150 A
• Voltage Rating: 415 VAC
• Configuration: 3d (3 poles, 3 disconnects)

Applications & compatibility

This circuit breaker is commonly deployed in power distribution panels, motor control centers, and main incoming feeders for industrial facilities. It is ideal for protecting equipment in sectors such as manufacturing, water treatment, and heavy industry where reliable and high-capacity fault protection is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433516 or contact our technical team for cross-reference assistance with compatible NSX components.
