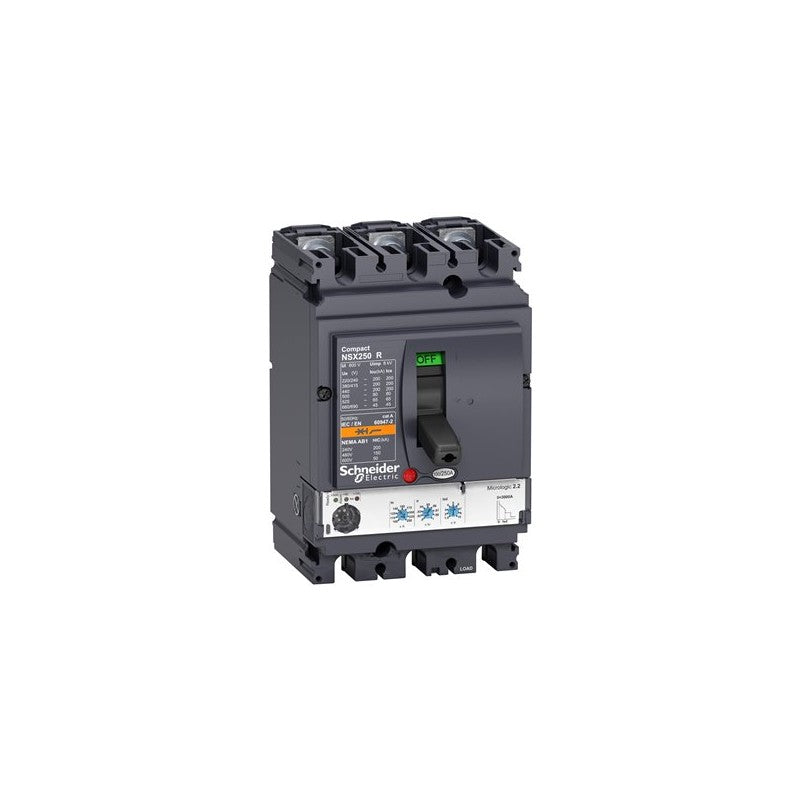

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust protection in demanding industrial environments. This 3-pole unit features a 220A Micrologic 2.2 M trip unit and offers a significant interrupting capacity of 200 kA at 415 VAC, making it suitable for high-fault current applications. Its design is optimized for integration into power distribution systems where reliable circuit protection is paramount.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Number of Poles: 3
• Trip Unit: Micrologic 2.2 M
• Trip Unit Current Rating: 220 A
• Interrupting Capacity: 200 kA at 415 VAC
• Configuration: 3d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This Schneider Electric circuit breaker is commonly deployed in motor control centers, power distribution panels, and heavy machinery applications. It is designed for use in systems requiring high short-circuit withstand capability, such as manufacturing plants, data centers, and critical infrastructure facilities. Verify compatibility with your specific system requirements against the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433517 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
