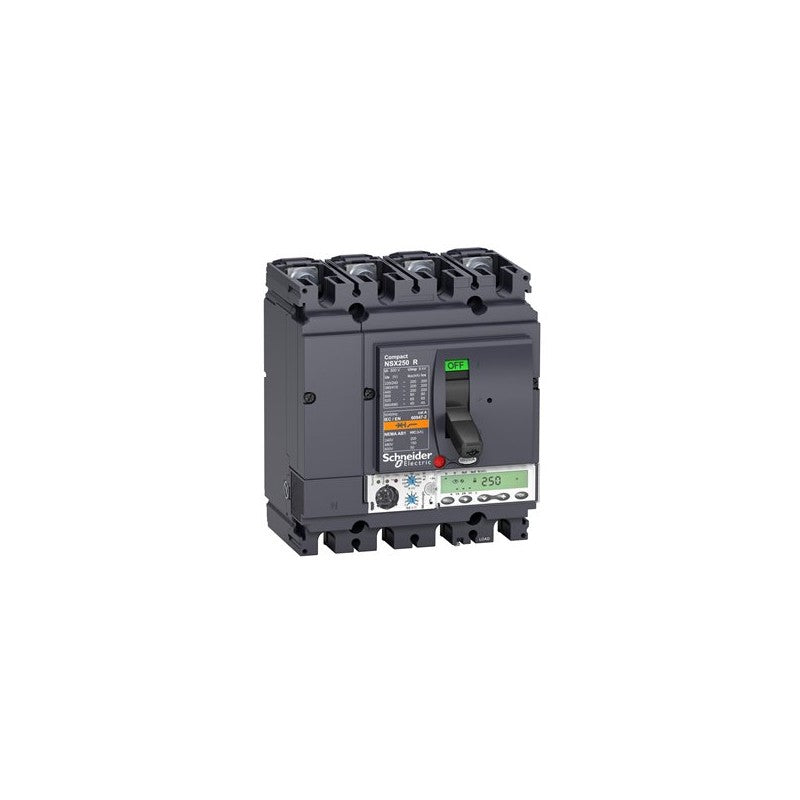

The Schneider Electric Compact NSX250R circuit breaker is engineered for robust power distribution and protection in demanding industrial environments. This 4-pole unit, featuring a Micrologic 5.2 E trip unit, offers advanced control and monitoring capabilities essential for critical infrastructure and machinery.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Poles: 4
• Rated Service Breaking Capacity (Icu): 200 kA at 415 VAC
• Trip Unit: Micrologic 5.2 E
• Current Rating: 100 A
• Configuration: 4d (likely indicating 4 normally open auxiliary contacts and 4 normally closed auxiliary contacts, verify with datasheet)
• Voltage Rating: Designed for operation up to 415 VAC

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a feeder breaker in various industrial settings. It is commonly found protecting equipment in manufacturing plants, data centers, and infrastructure projects requiring high fault current withstand capabilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433519 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
