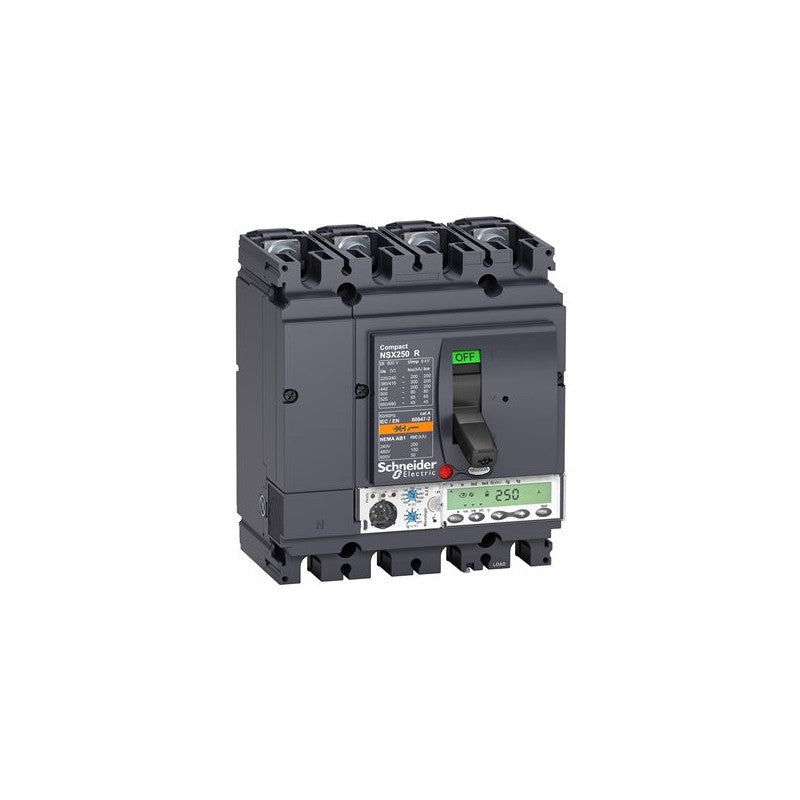

The Schneider Electric Compact NSX250R is a 4-pole circuit breaker designed for robust electrical protection in industrial environments. This unit features a breaking capacity of 200 kA at 415 VAC, ensuring safety and reliability in high-fault current situations. It is equipped with the Micrologic 6.2 E trip unit, providing advanced protection and monitoring capabilities.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Number of Poles: 4
• Rated Operational Voltage: 415 VAC
• Breaking Capacity: 200 kA at 415 VAC
• Trip Unit: Micrologic 6.2 E
• Current Rating: 100 A
• Configuration: 4d (refer to manufacturer datasheet for specific meaning of '4d')

Applications & compatibility

This circuit breaker is suitable for use in distribution switchboards, motor control centers, and power distribution systems across various industries. It is commonly found in applications requiring high breaking capacity and precise overcurrent protection, such as manufacturing plants, data centers, and infrastructure projects. Compatibility with Schneider Electric's NSX accessories and systems should be verified against the manufacturer's specifications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433525 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
