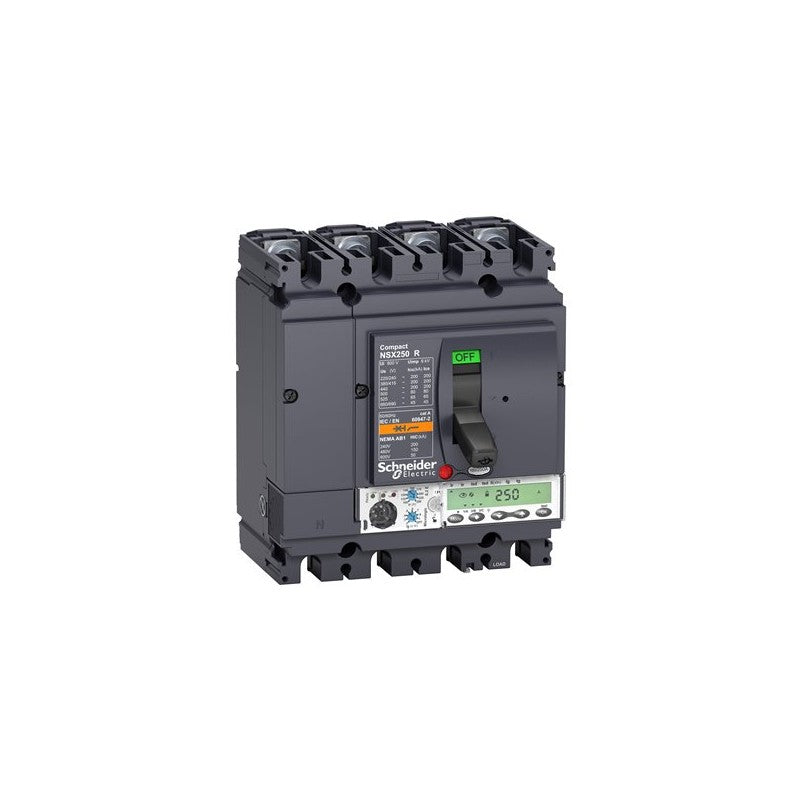

The Schneider Electric Compact NSX250R is a 4-pole circuit breaker designed for robust electrical protection in demanding industrial environments. This unit features a Micrologic 6.2 E trip unit and is rated for 250 Amperes, providing essential safety for equipment operating at 415 VAC. Its high interrupting capacity of 200 kA at 415 VAC ensures reliable performance and protection against severe short-circuit events, making it suitable for main distribution panels and critical machinery protection.

Technical details

• Series: Compact NSX
• Model: NSX250R
• Trip Unit: Micrologic 6.2 E
• Rated Current: 250 A
• Number of Poles: 4d (4 poles)
• Voltage Rating: 415 VAC
• Interrupting Capacity: 200 kA at 415 VAC
• Trip Unit Functionality: Electronic, with adjustable settings for overload and short-circuit protection (specific settings require datasheet verification).

Applications & compatibility

This circuit breaker is commonly deployed in main power distribution systems, motor control centers, and as protection for large inductive loads within manufacturing facilities. It is compatible with various Schneider Electric NSX accessories and enclosures, allowing for flexible system integration in applications such as conveyor systems, pump controls, and HVAC systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433529 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
