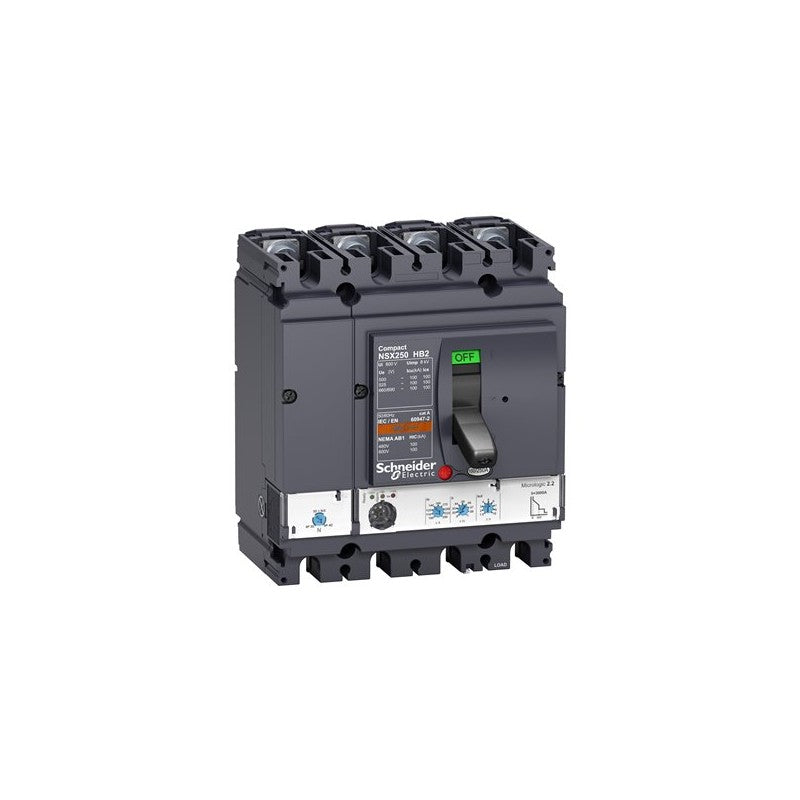

The Schneider Electric Compact NSX250HB2 is a 4-pole circuit breaker designed for robust electrical protection in industrial environments. This unit features a Micrologic 2.2 electronic trip unit and is rated for a significant interrupting capacity, making it suitable for applications requiring high fault current handling. It is a key component in power distribution systems where reliable circuit interruption is paramount.

Technical details

• Series: Compact NSX
• Model: NSX250HB2
• Number of Poles: 4
• Trip Unit: Micrologic 2.2
• Rated Current: 100 A
• Interrupting Capacity: 100 kA at 500 VAC
• Configuration: 4d (refer to manufacturer datasheet for specific meaning of '4d')
• Voltage Rating: Up to 500 VAC

Applications & compatibility

This circuit breaker is commonly employed in main distribution panels, motor control centers, and sub-distribution boards within manufacturing facilities. It provides essential protection for electrical circuits in applications such as conveyor systems, pump controls, and HVAC systems where reliable and safe operation is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433571 or contact our technical team for cross-reference assistance with compatible Compact NSX series components.
