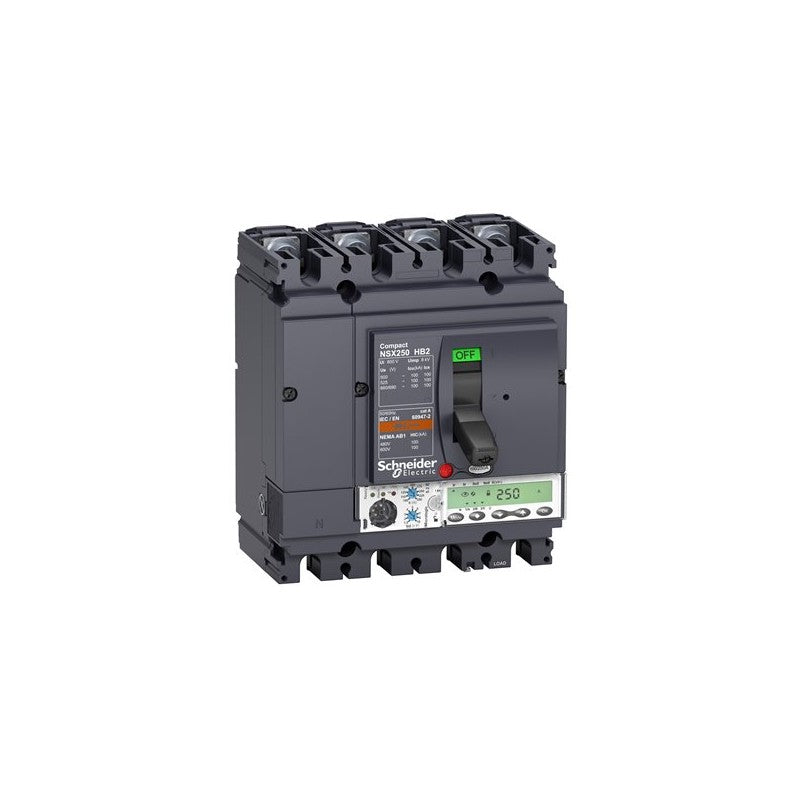

The Schneider Electric Compact NSX250HB2 is a 4-pole circuit breaker designed for robust electrical protection in demanding industrial environments. This unit, featuring the Micrologic 5.2 E trip unit, offers advanced control and monitoring capabilities for critical power distribution systems. It is commonly integrated into main distribution panels and motor control centers within manufacturing facilities.

Technical details

• Series: Compact NSX
• Model: NSX250HB2
• Trip Unit: Micrologic 5.2 E
• Rated Current: 160 A
• Number of Poles: 4 (4d)
• Interrupting Capacity: 100 kA at 500 VAC
• Voltage Rating: Up to 500 VAC
• Trip Unit Functions: Includes adjustable long-time, short-time, instantaneous, and ground fault protection settings.

Applications & compatibility

This circuit breaker is suitable for protecting electrical circuits in a wide range of industrial applications, including motor control, power distribution, and facility protection. It is compatible with systems requiring high interrupting capacity and precise overcurrent protection, such as those found in food and beverage processing, automotive manufacturing, and water treatment plants.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433581 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
