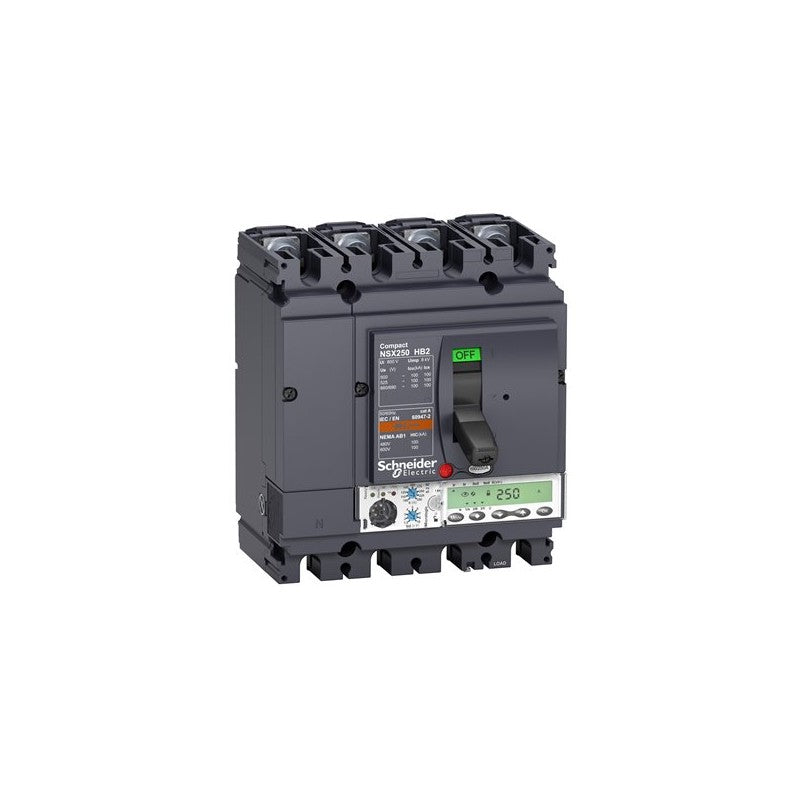

The Schneider Electric Compact NSX250HB2 circuit breaker is engineered for robust protection in demanding industrial environments. As part of the NSX series, this 4-pole breaker offers a high interrupting capacity of 100 kA at 500 VAC, ensuring safety and operational continuity. It features the advanced Micrologic 5.2 E trip unit for precise current monitoring and protection up to 250 A.

Technical details

• Series: Compact NSX
• Model: NSX250HB2
• Poles: 4
• Interrupting Capacity: 100 kA at 500 VAC
• Trip Unit: Micrologic 5.2 E
• Rated Current: 250 A
• Configuration: 4d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a protective device for large electrical loads. Its high interrupting rating makes it ideal for applications where significant fault currents are anticipated, such as in manufacturing plants, data centers, and utility substations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433583 or contact our technical team for cross-reference assistance with compatible NSX series components.
