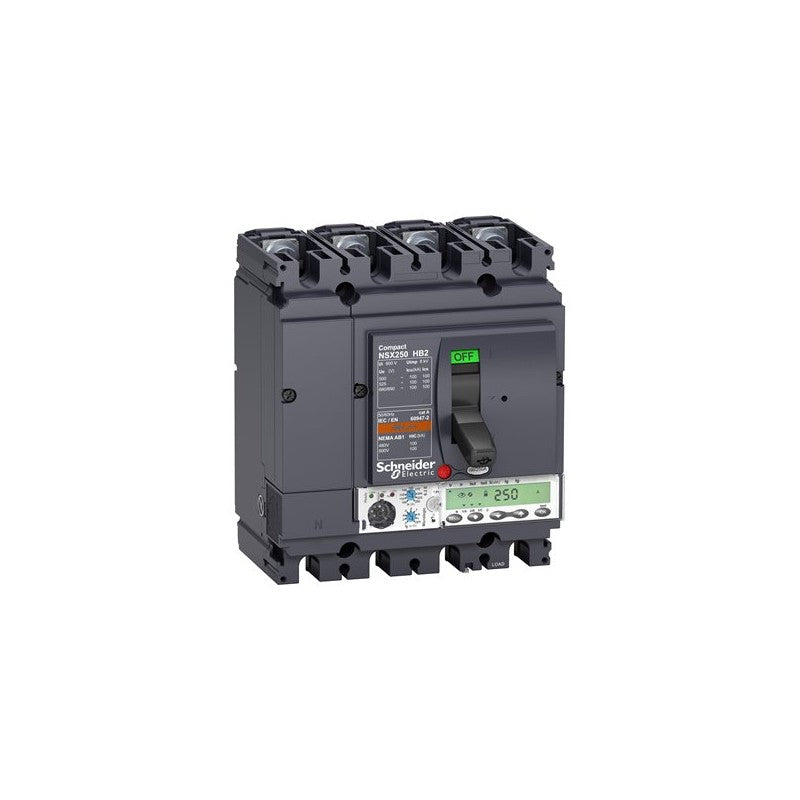

The Schneider Electric Compact NSX250HB2 is a 4-pole circuit breaker designed for robust electrical protection in demanding industrial environments. This unit features a Micrologic 6.2 E trip unit and is rated for 160 Amperes, making it suitable for applications requiring high fault current interruption capabilities. Its construction within the NSX series signifies a commitment to reliable performance and advanced circuit protection technology.

Technical details

• Series: Compact NSX
• Model: NSX250HB2
• Trip Unit: Micrologic 6.2 E
• Current Rating: 160 A
• Number of Poles: 4
• Interrupting Capacity: 100 kA at 500 VAC
• Voltage Rating: Up to 500 VAC
• Form Factor: Molded Case Circuit Breaker (MCCB)
• Protection Features: Integrated electronic trip unit with adjustable settings for overload, short circuit, and ground fault protection (specific settings for Micrologic 6.2 E should be verified against manufacturer datasheet).

Applications & compatibility

This circuit breaker is commonly employed in power distribution systems for industrial facilities, including manufacturing plants, data centers, and commercial buildings. It is ideal for protecting main feeders, branch circuits, and motor loads where high short-circuit current ratings are essential. The NSX250HB2 is compatible with various Schneider Electric NSX accessories for enhanced functionality and integration into larger electrical switchgear assemblies.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433587 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
