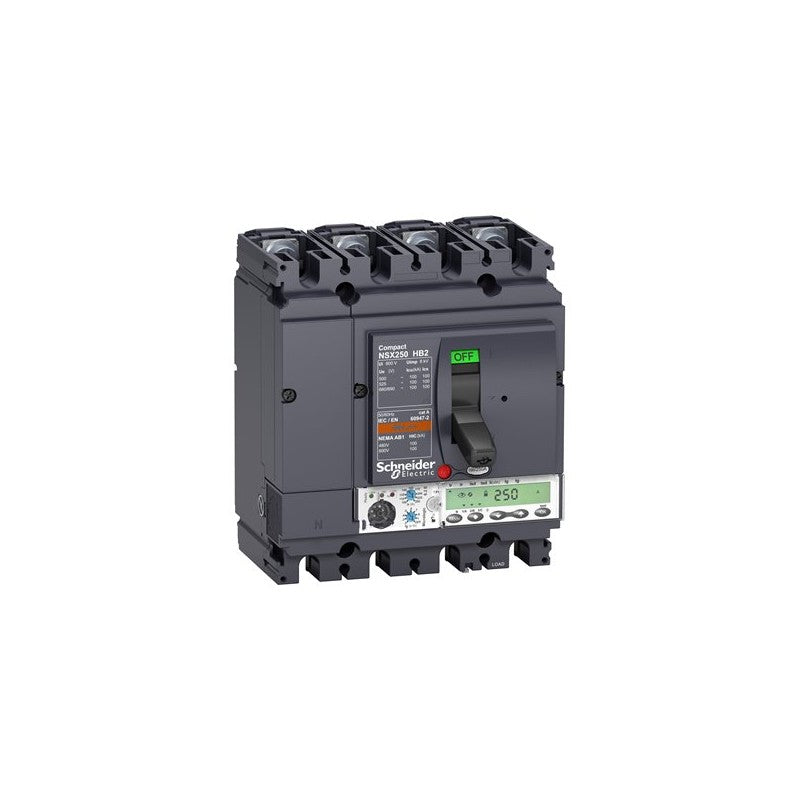

The Schneider Electric Compact NSX250HB2 is a 4-pole circuit breaker designed for robust electrical protection in demanding industrial environments. This unit features a high interrupting capacity of 100 kA at 500 VAC, ensuring safety and reliability in fault conditions. It is equipped with the Micrologic 6.2 E electronic trip unit, providing advanced protection and control capabilities for systems requiring precise current management.

Technical details

• Series: Compact NSX
• Model: NSX250HB2
• Poles: 4
• Rated Current: 250 A
• Interrupting Capacity: 100 kA at 500 VAC
• Trip Unit: Micrologic 6.2 E
• Voltage Rating: 500 VAC
• Configuration: 4d (refer to manufacturer datasheet for specific configuration details)

Applications & compatibility

This circuit breaker is suitable for use in main distribution panels, motor control centers, and as a protective device for large electrical loads. Its high interrupting rating makes it ideal for applications where short-circuit currents can be significant, such as in manufacturing plants, data centers, and heavy industrial facilities. The Micrologic 6.2 E trip unit offers adjustable settings for overload, short-circuit, and ground fault protection, allowing for tailored system safeguarding.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric LV433589 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
