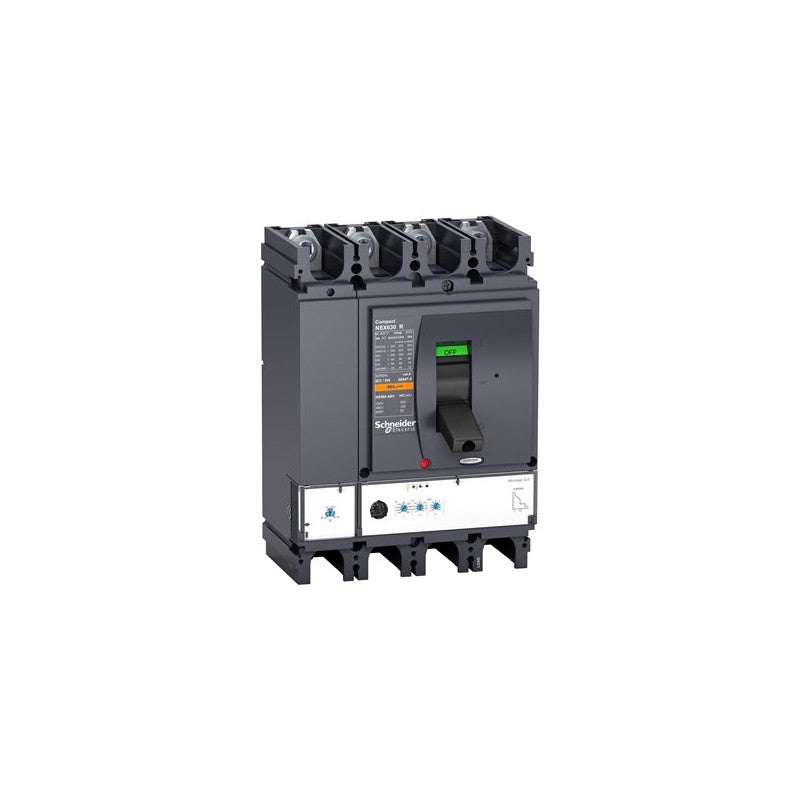

The Schneider Electric Compact NSX630R circuit breaker is engineered for robust protection in demanding industrial environments. This 4-pole unit, featuring a Micrologic 2.3 trip unit, provides essential circuit interruption capabilities for systems requiring high fault current handling. It is commonly integrated into main distribution panels and motor control centers within manufacturing facilities.

Technical details

• Series: Compact NSX
• Model: NSX630R
• Trip Unit: Micrologic 2.3
• Rated Current: 630 A
• Number of Poles: 4
• Interrupting Capacity: 200 kA at 415 VAC
• Voltage Rating: 415 VAC

Applications & compatibility

This circuit breaker is suitable for use in power distribution systems for heavy machinery, process control applications, and large-scale automation projects. Its high interrupting rating makes it ideal for applications where significant short-circuit currents are anticipated, ensuring personnel and equipment safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LV433701 or contact our technical team for cross-reference assistance with compatible Compact NSX components.
